Eco Mate Range – EM18′-1

Compact yet powerful, it blends modern luxury with advanced off-grid capability for couples who love to roam further.

External

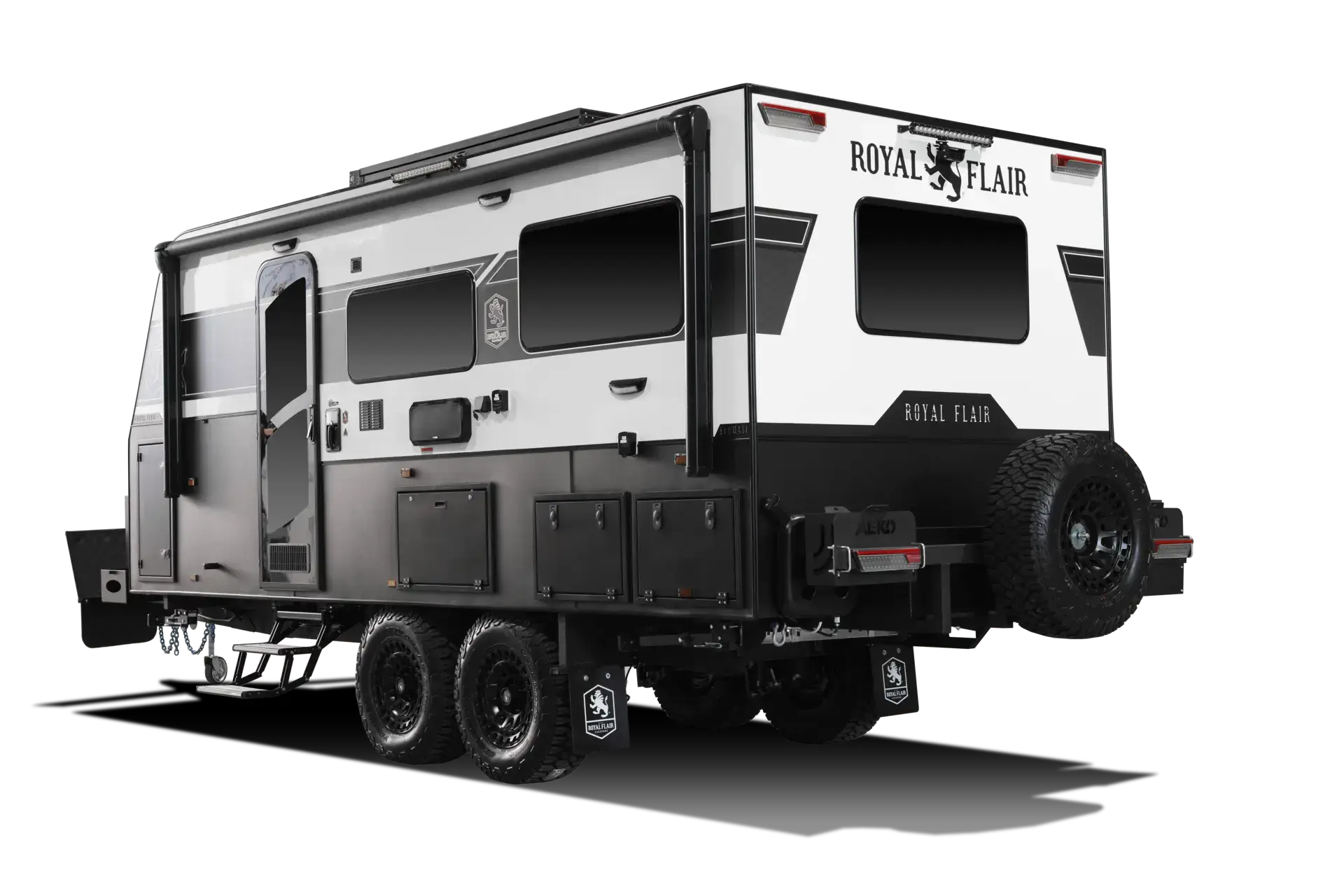

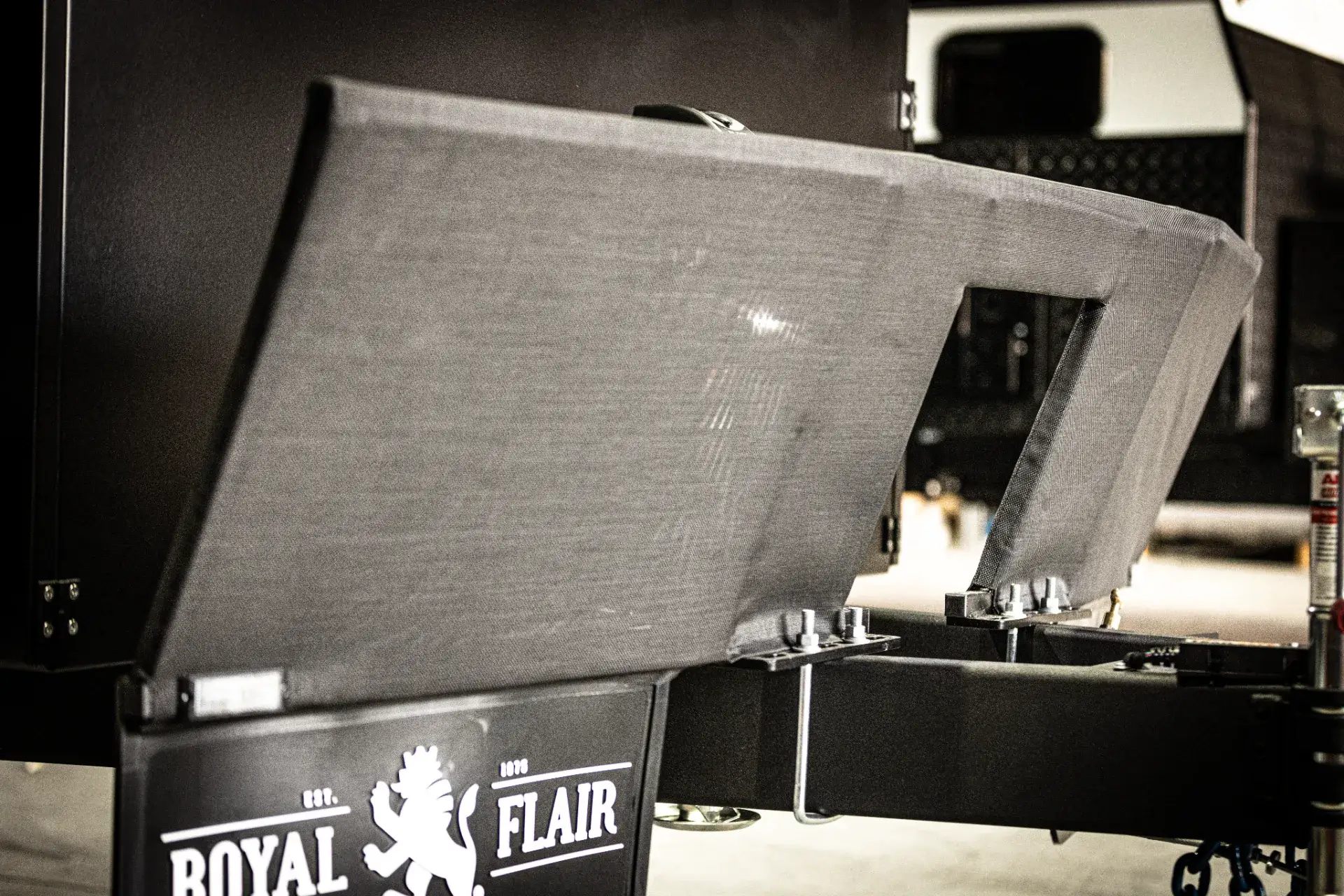

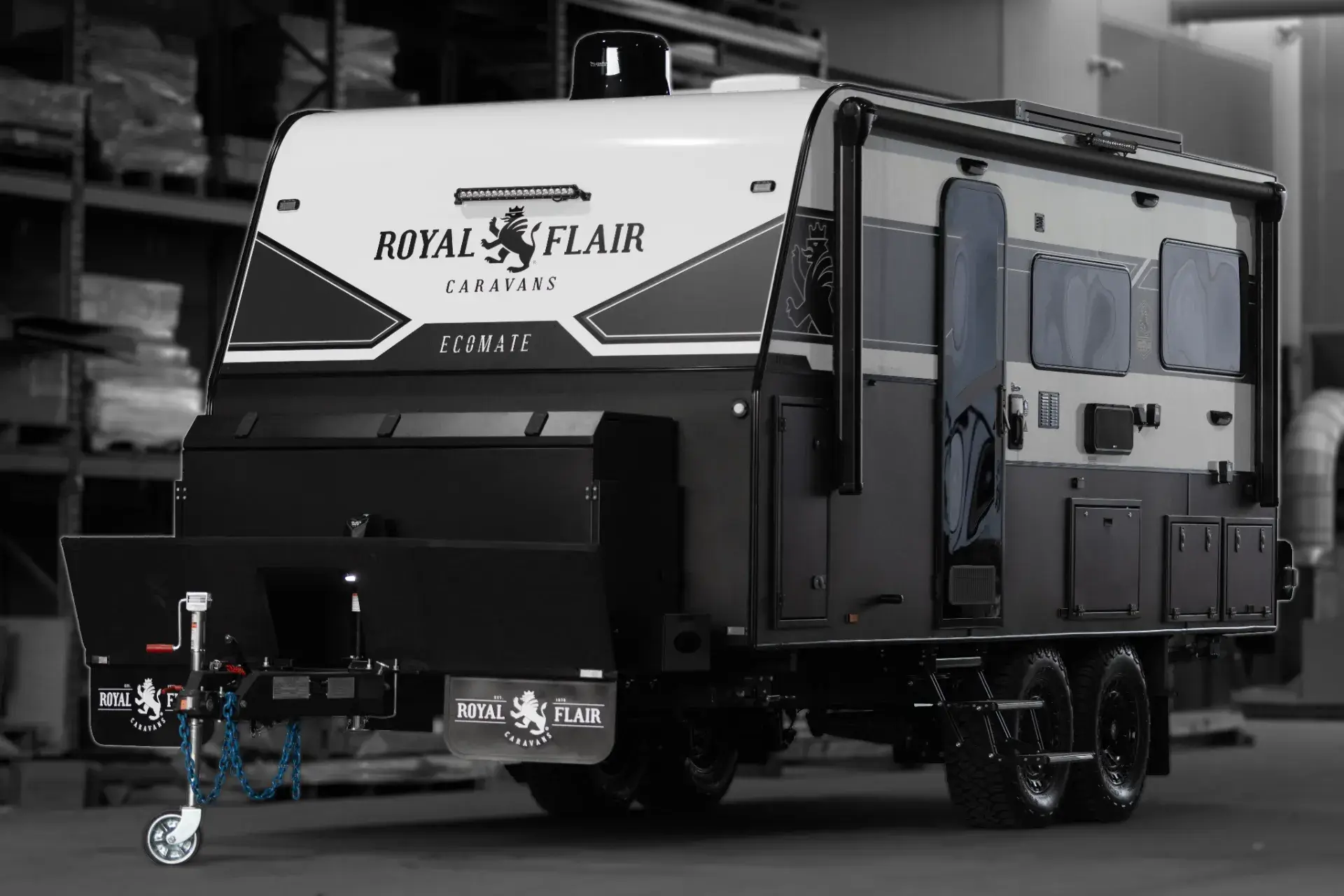

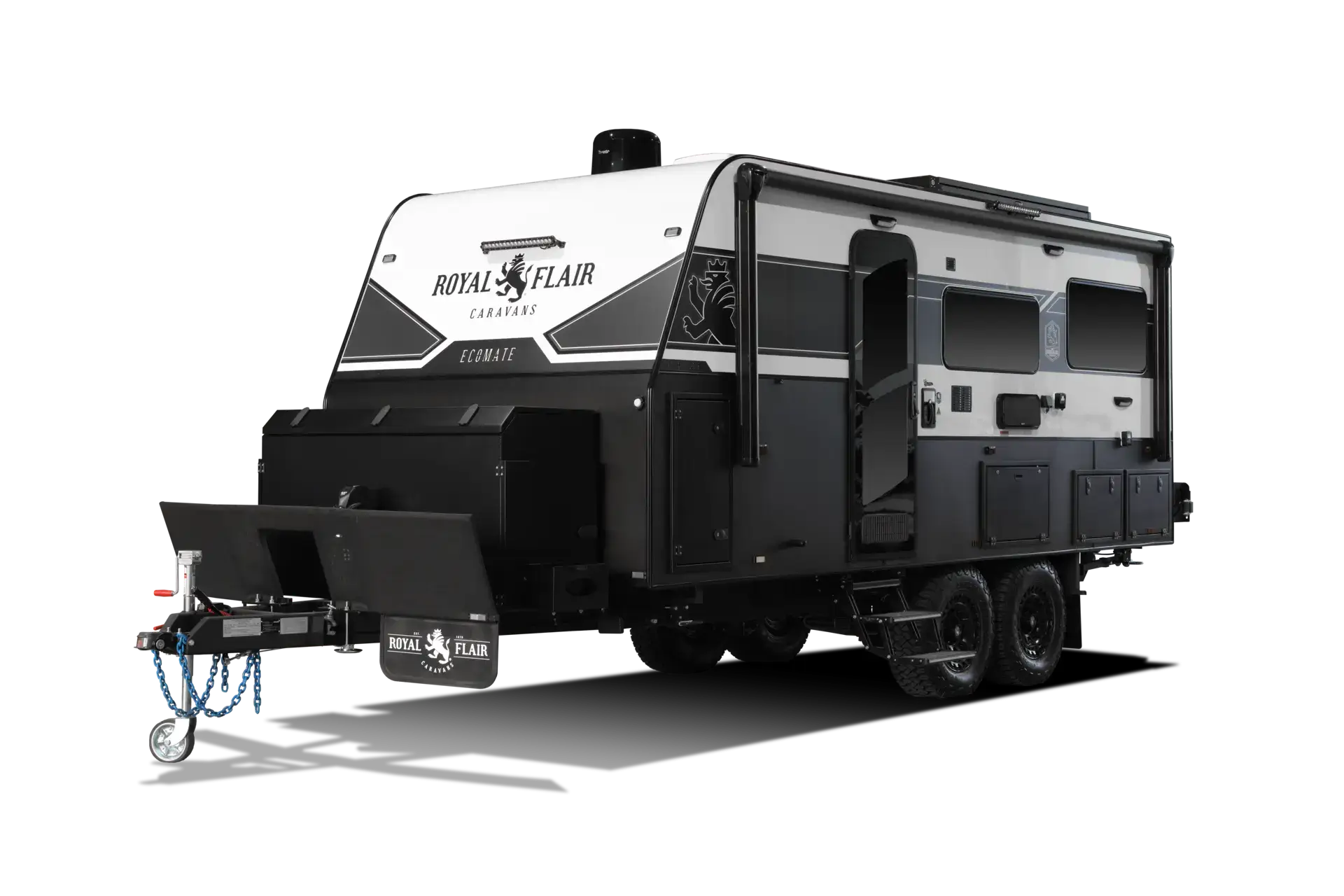

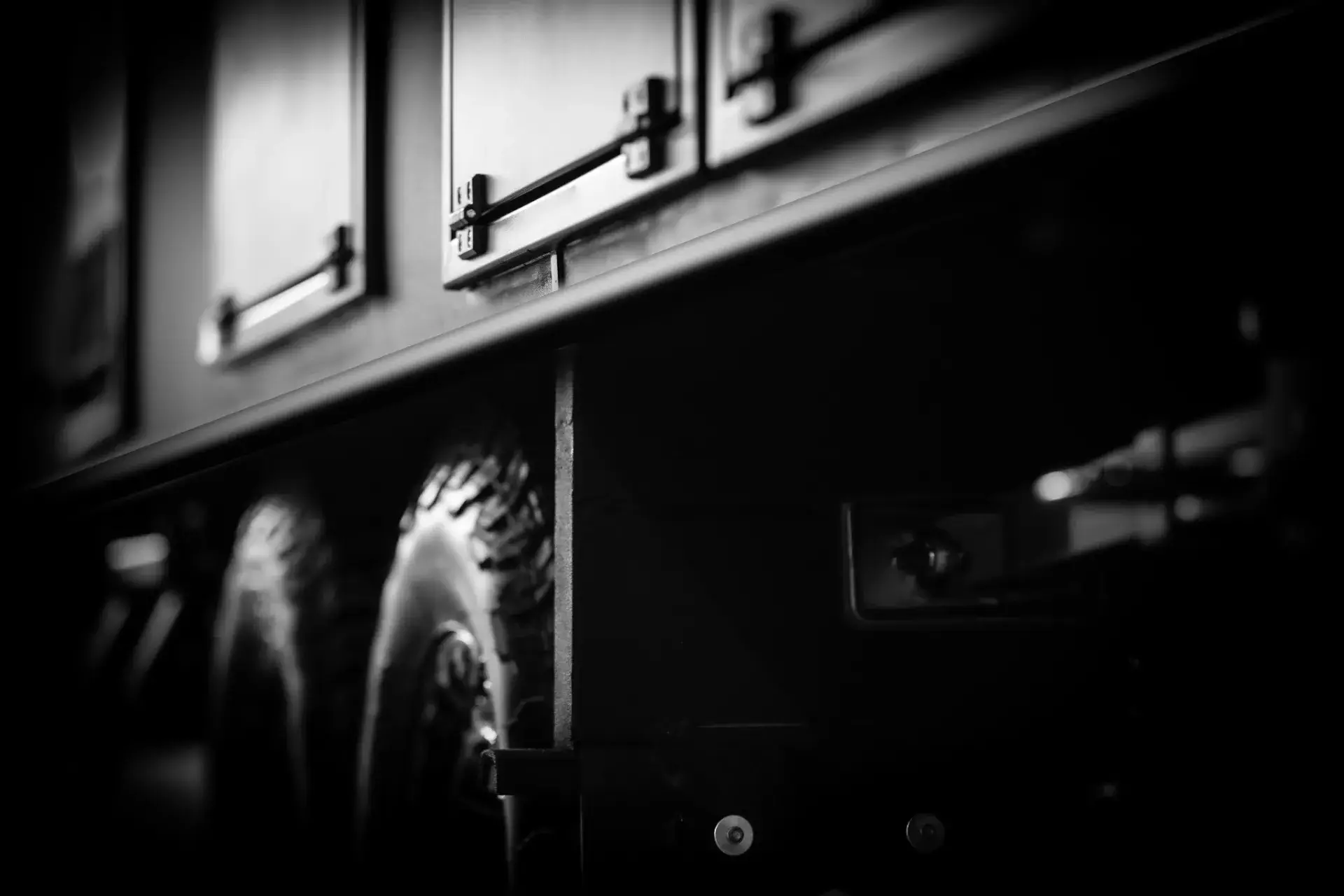

Below showcases the exterior of the Eco Mate Range – EM18′-1, highlighting its sleek design and durable construction.

Sleeps

ATM

4.5 tonne + Ball Weight With Maximum Payload

TARE

LENGTH

8170 mm

HEIGHT

Internal

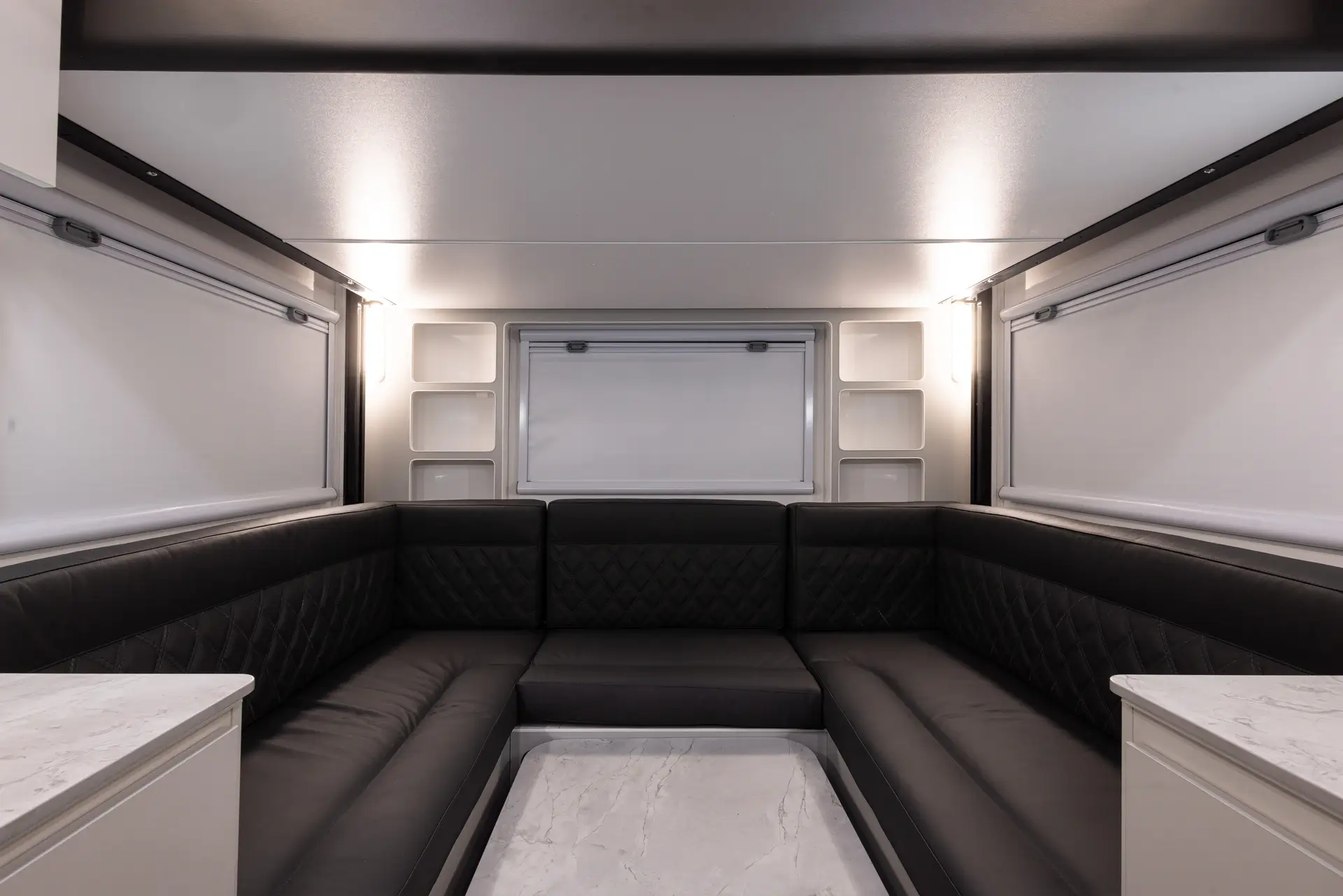

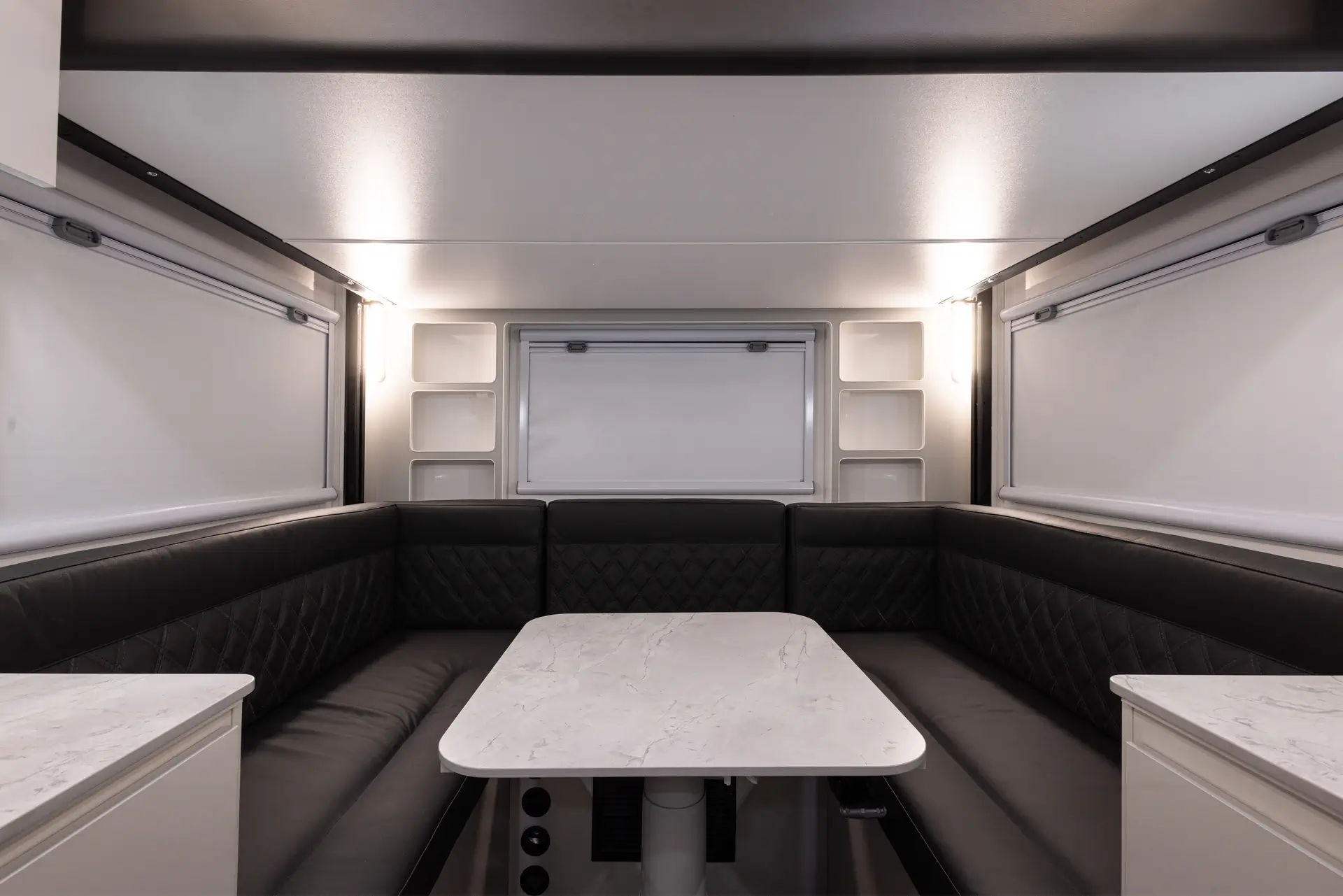

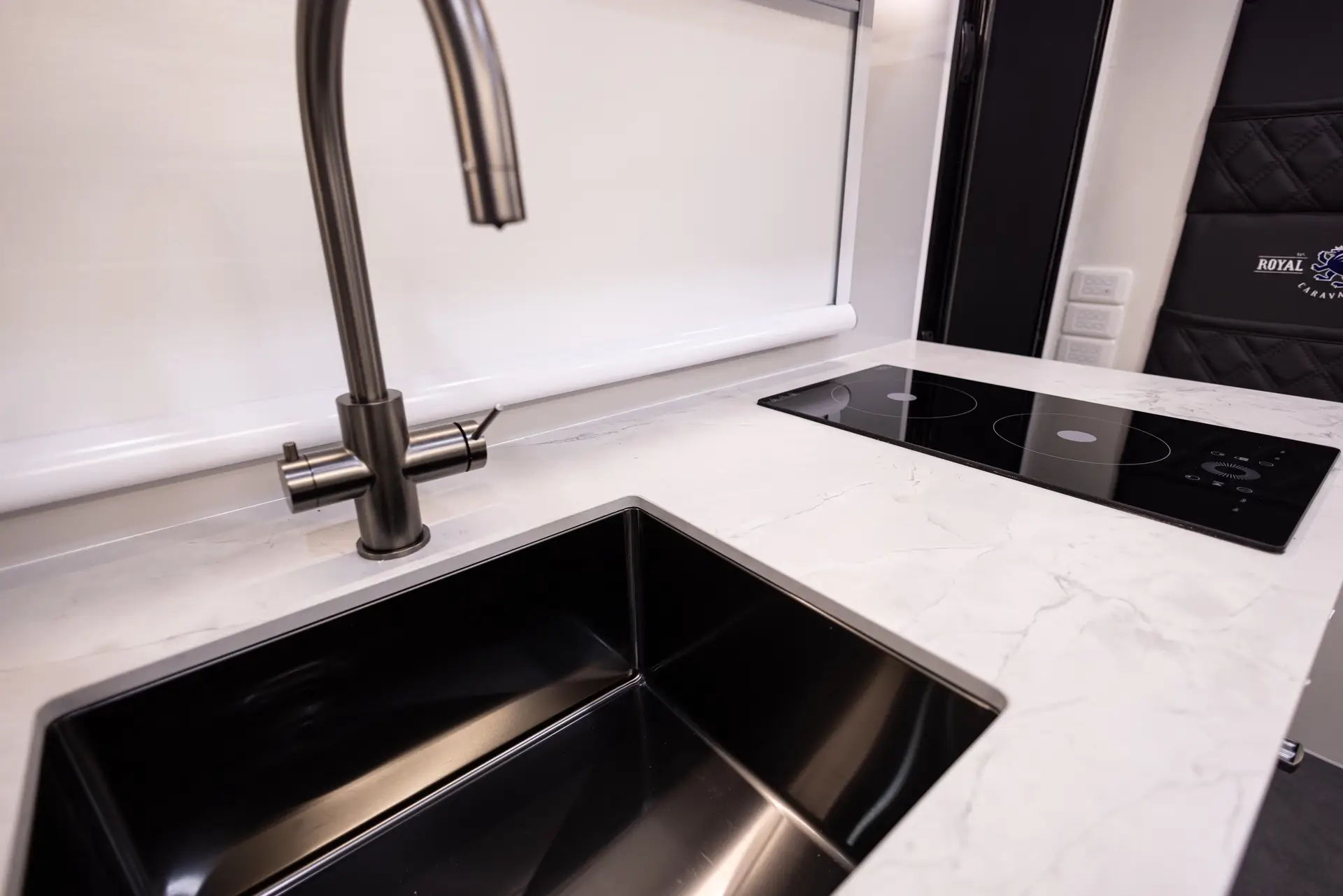

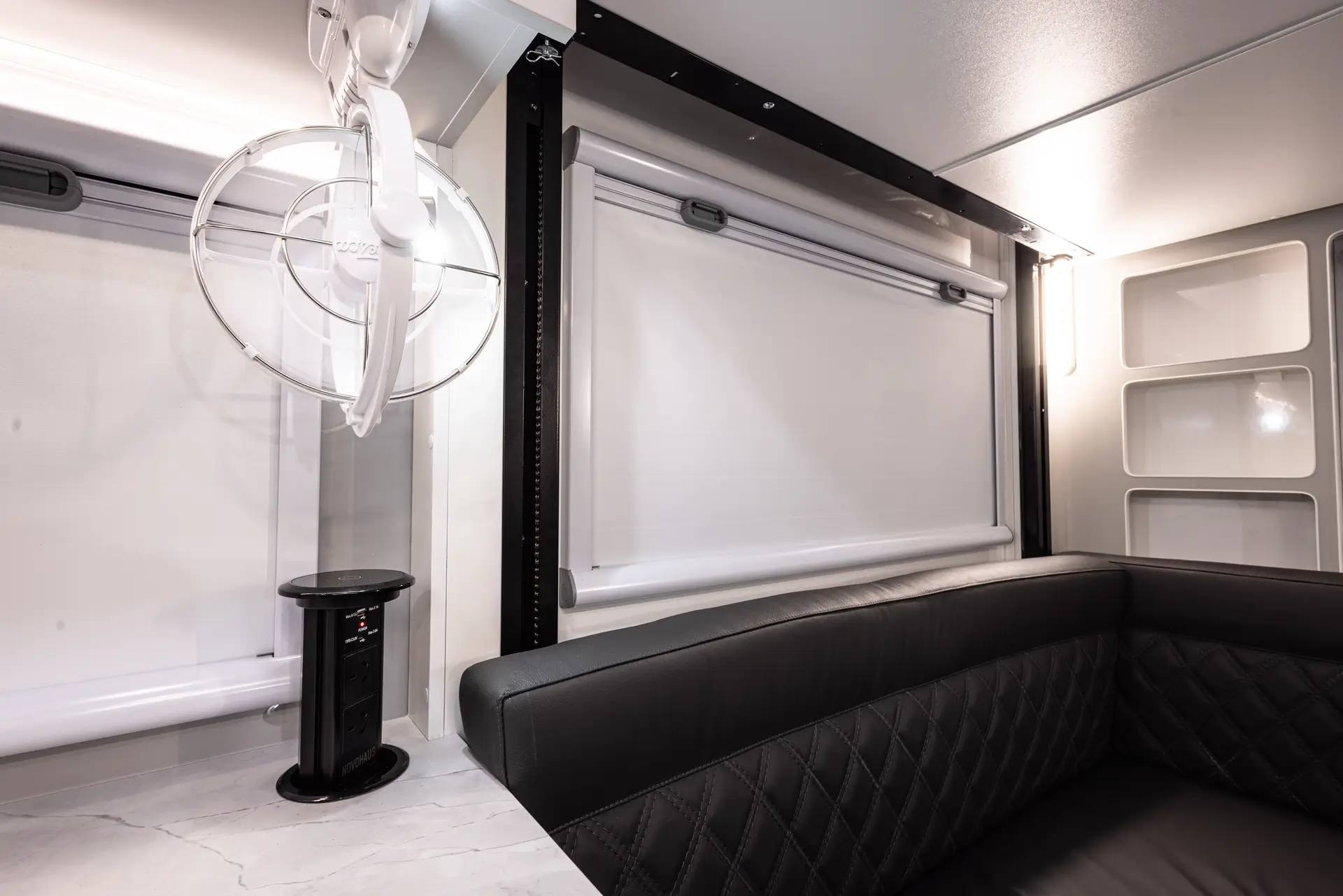

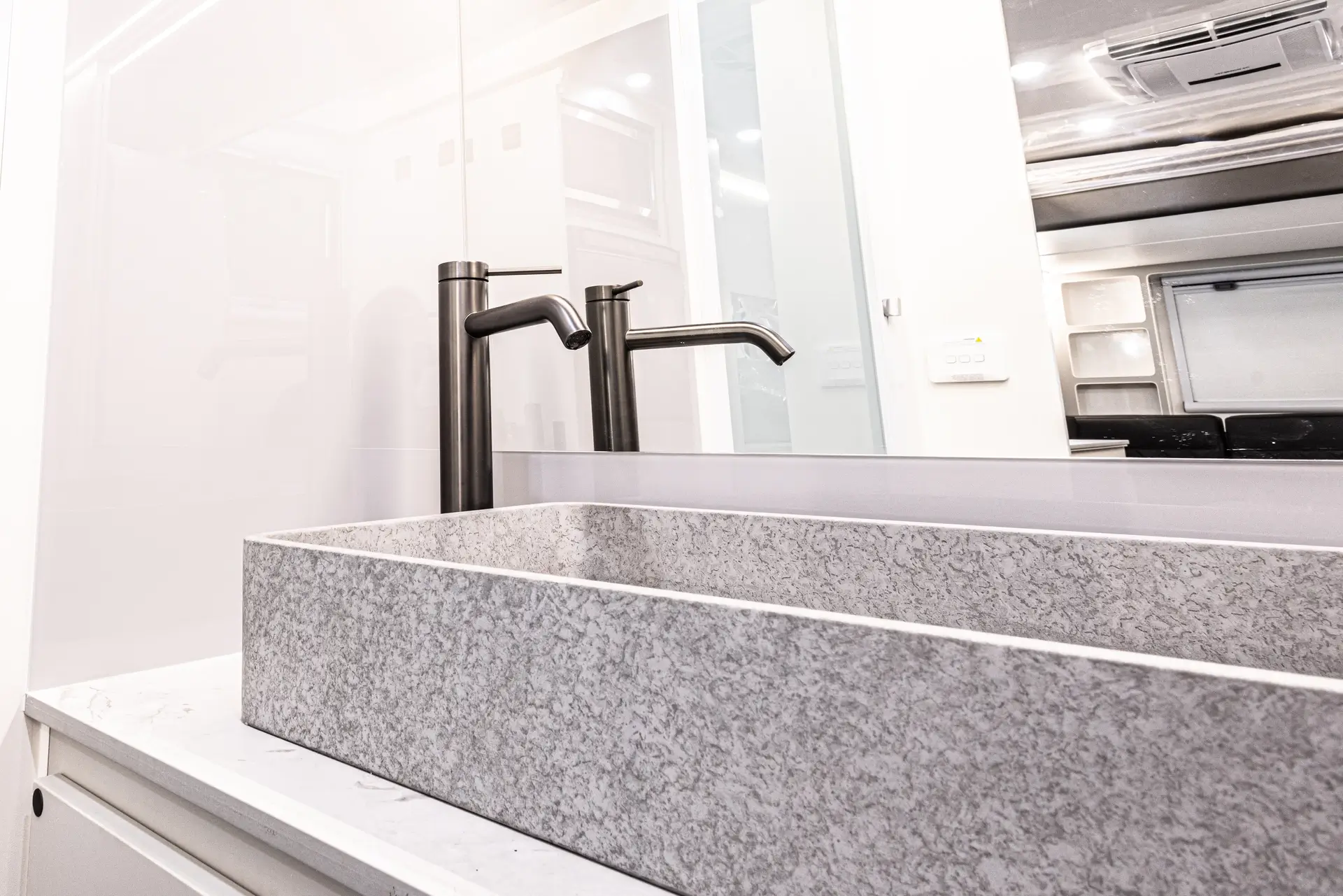

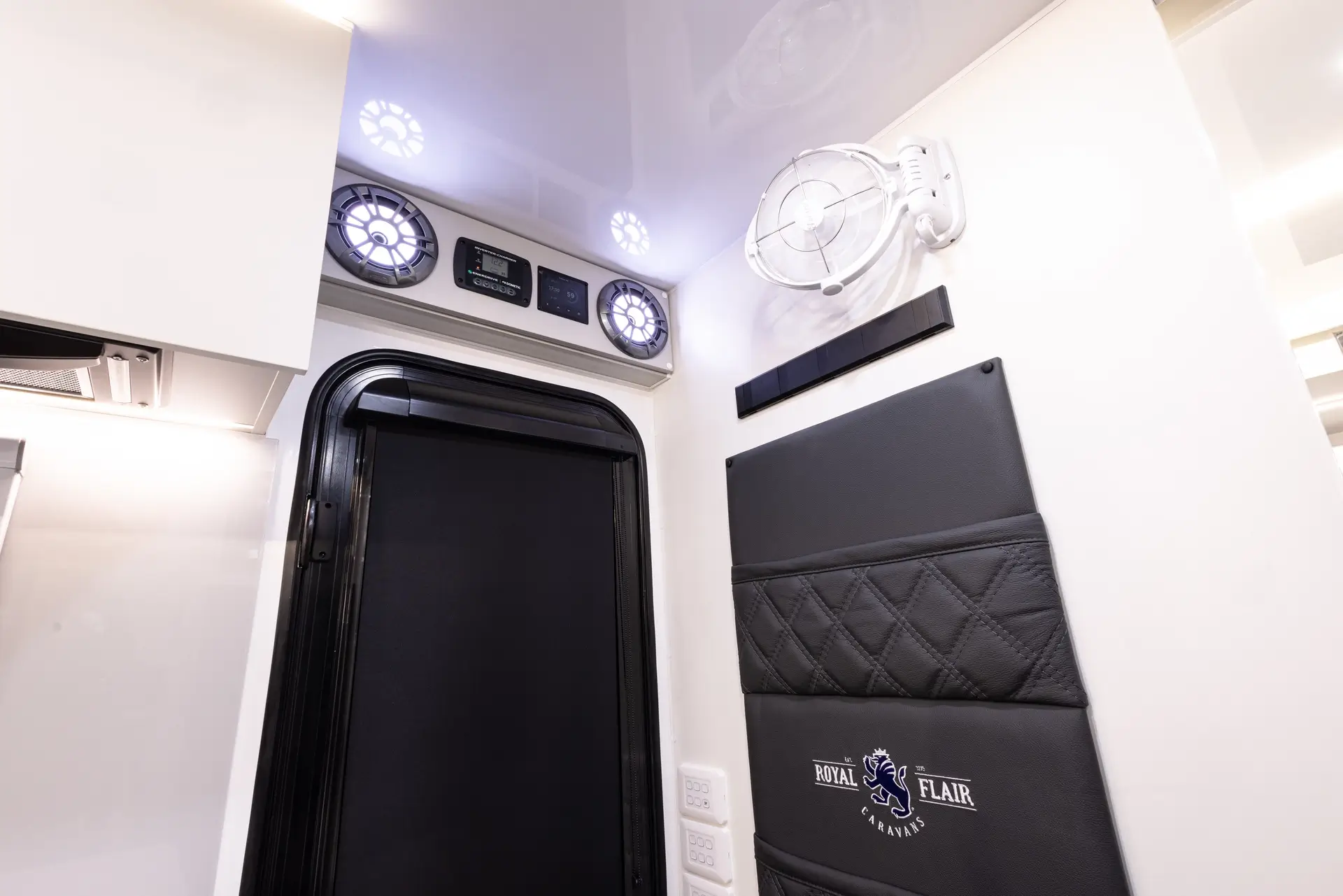

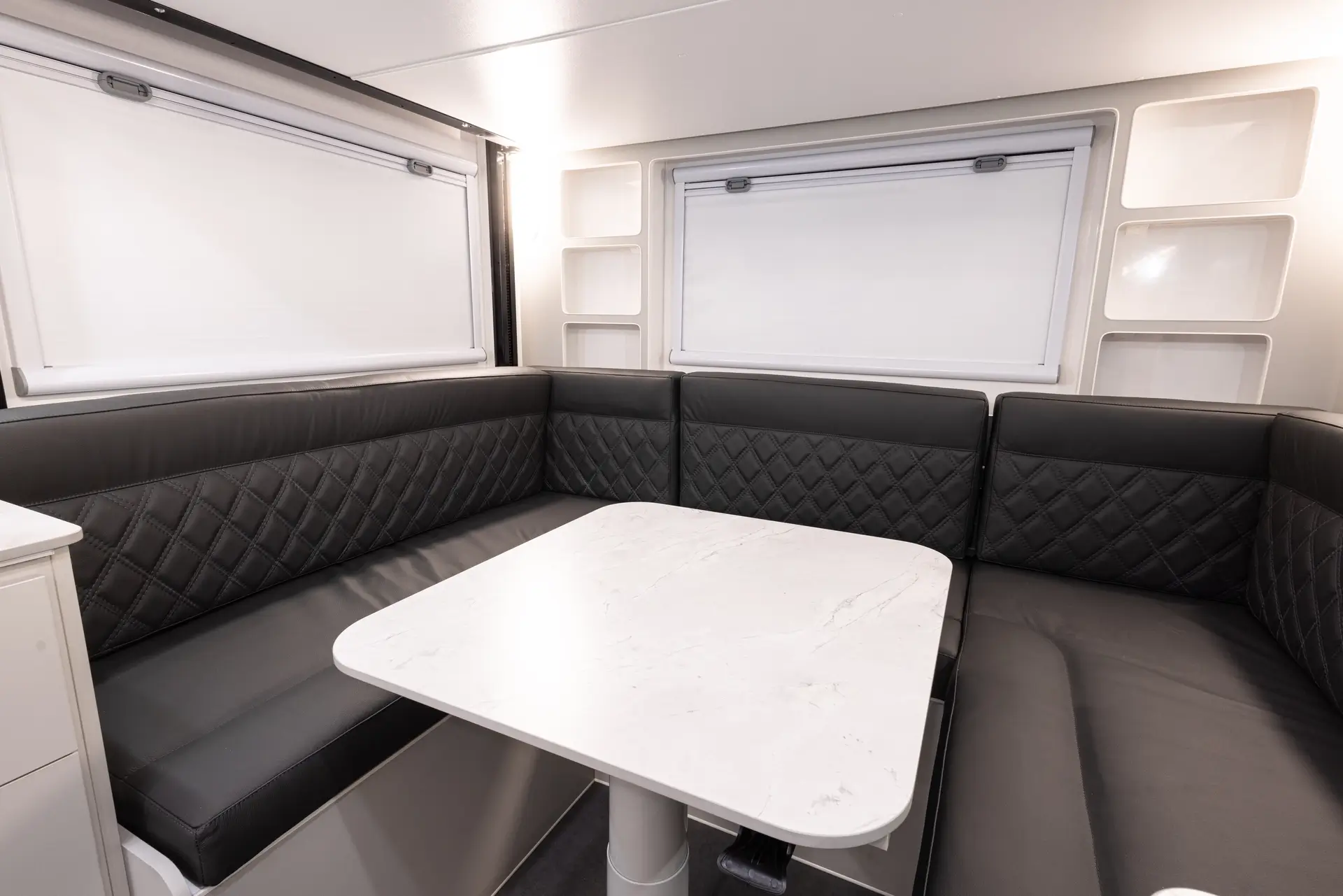

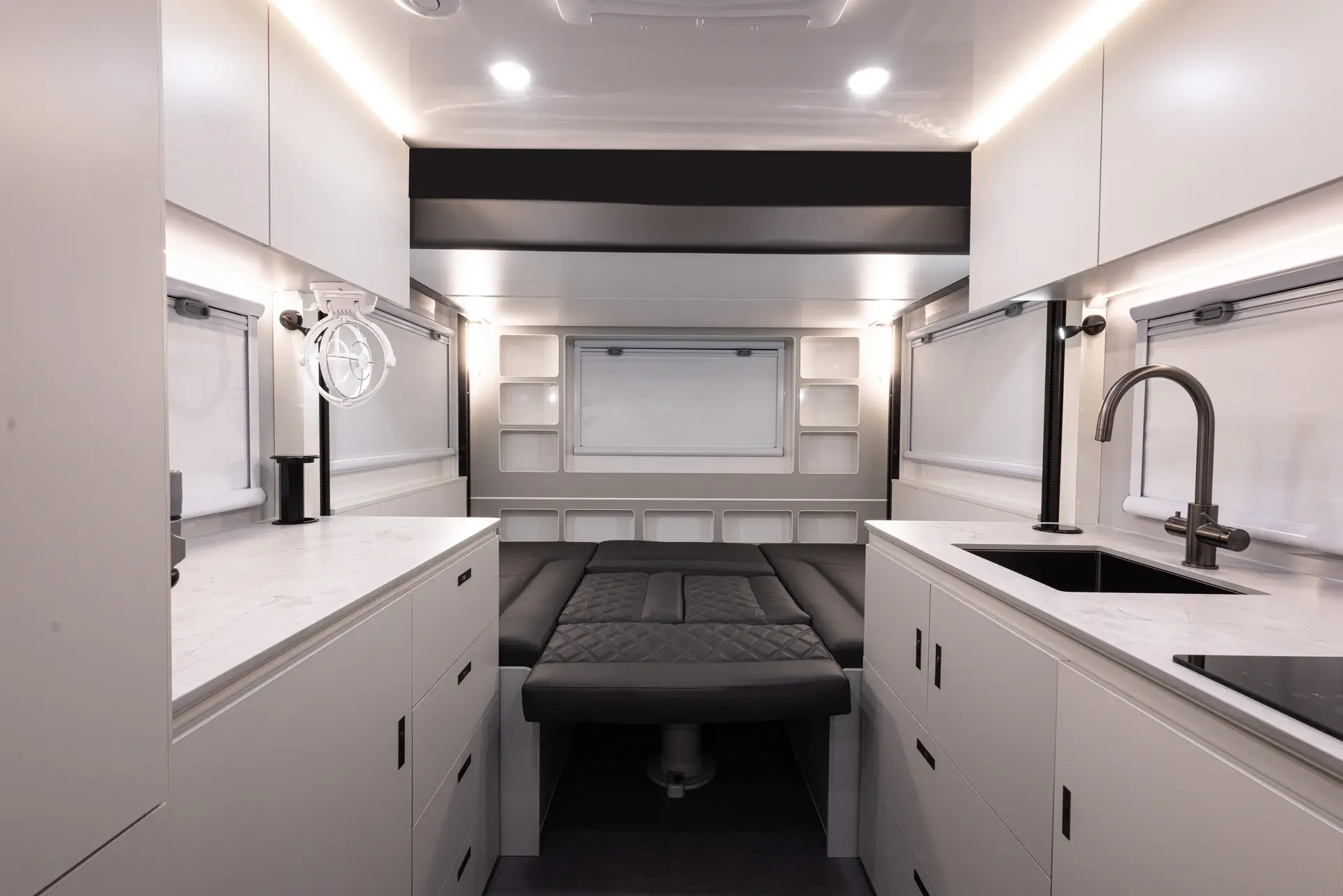

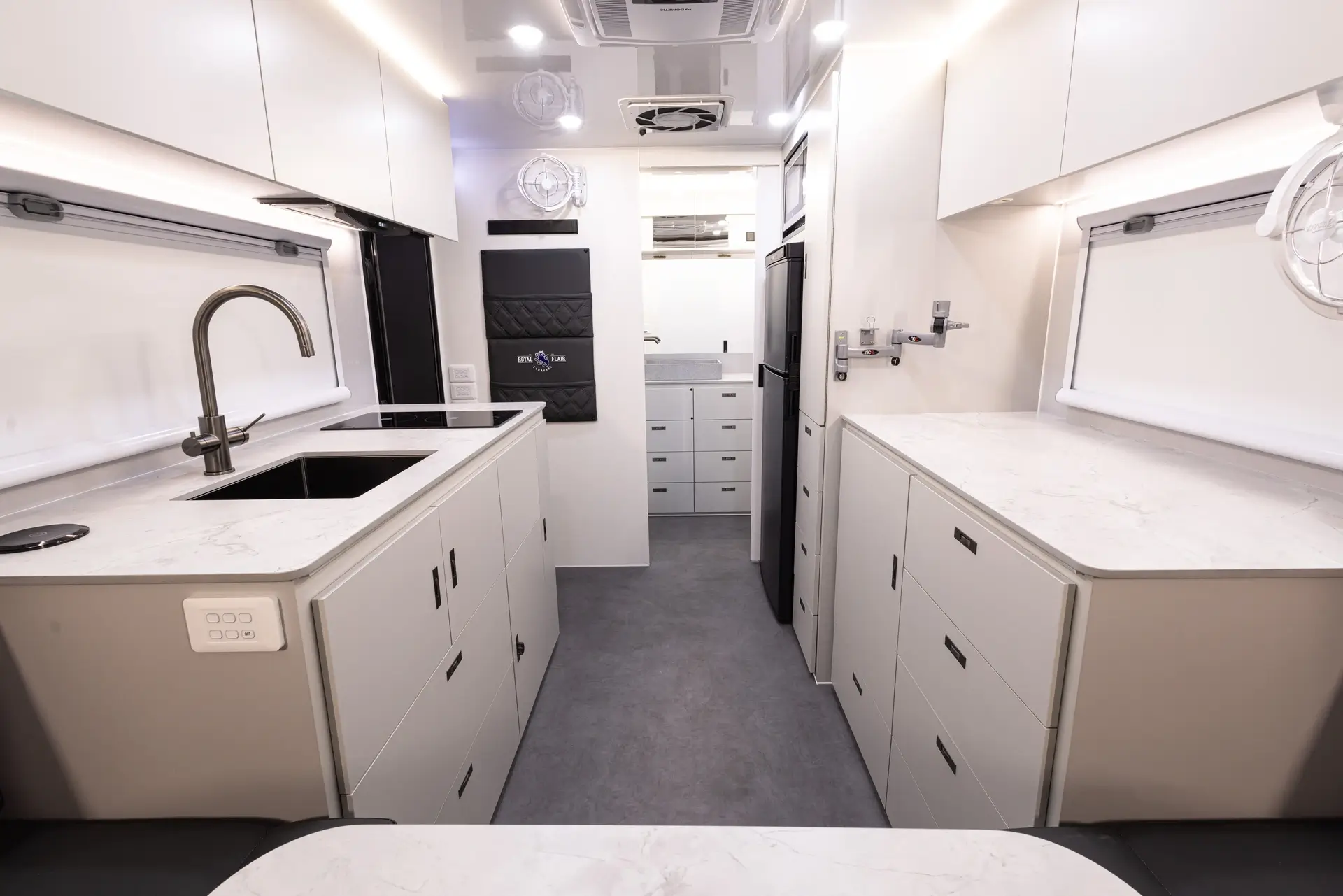

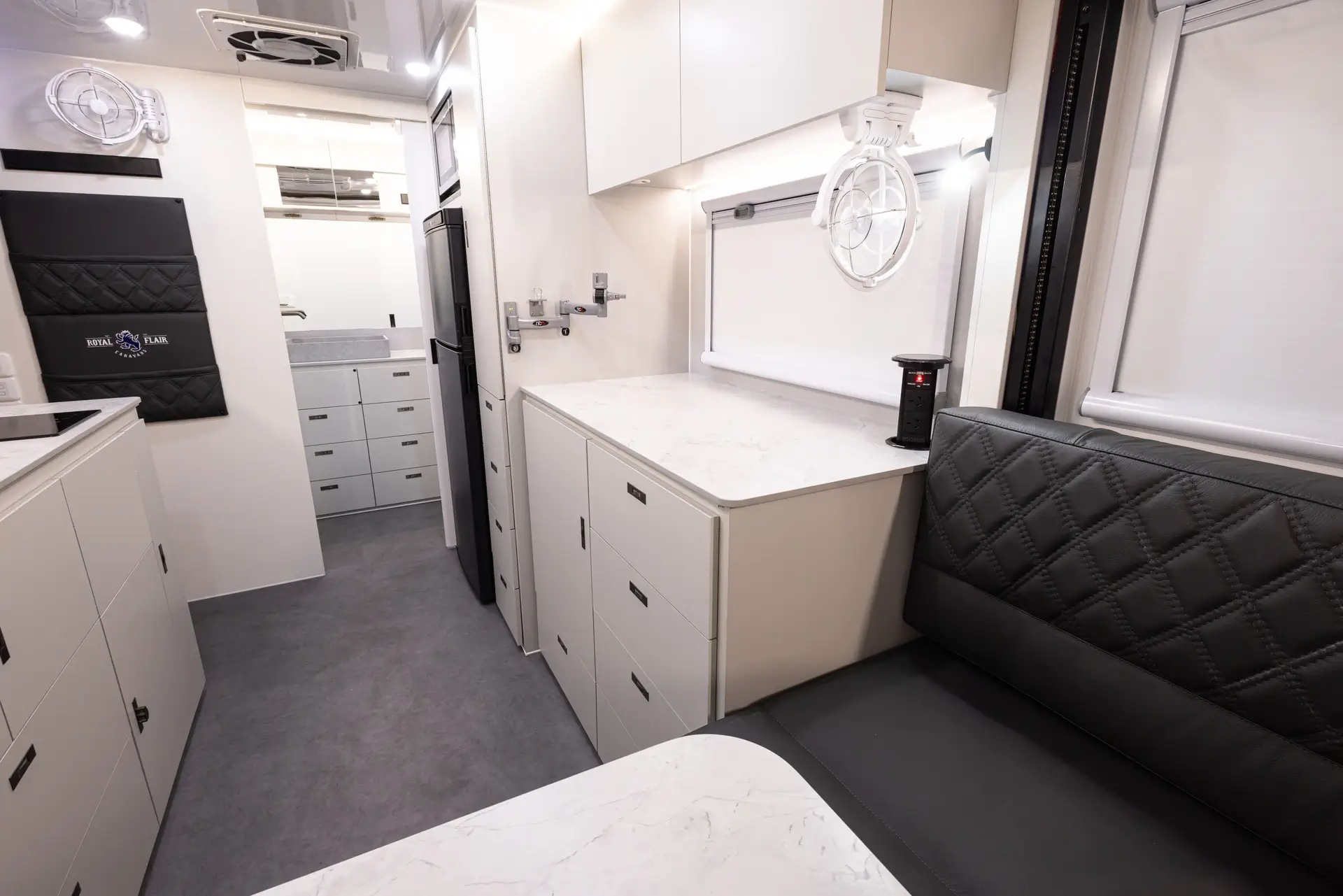

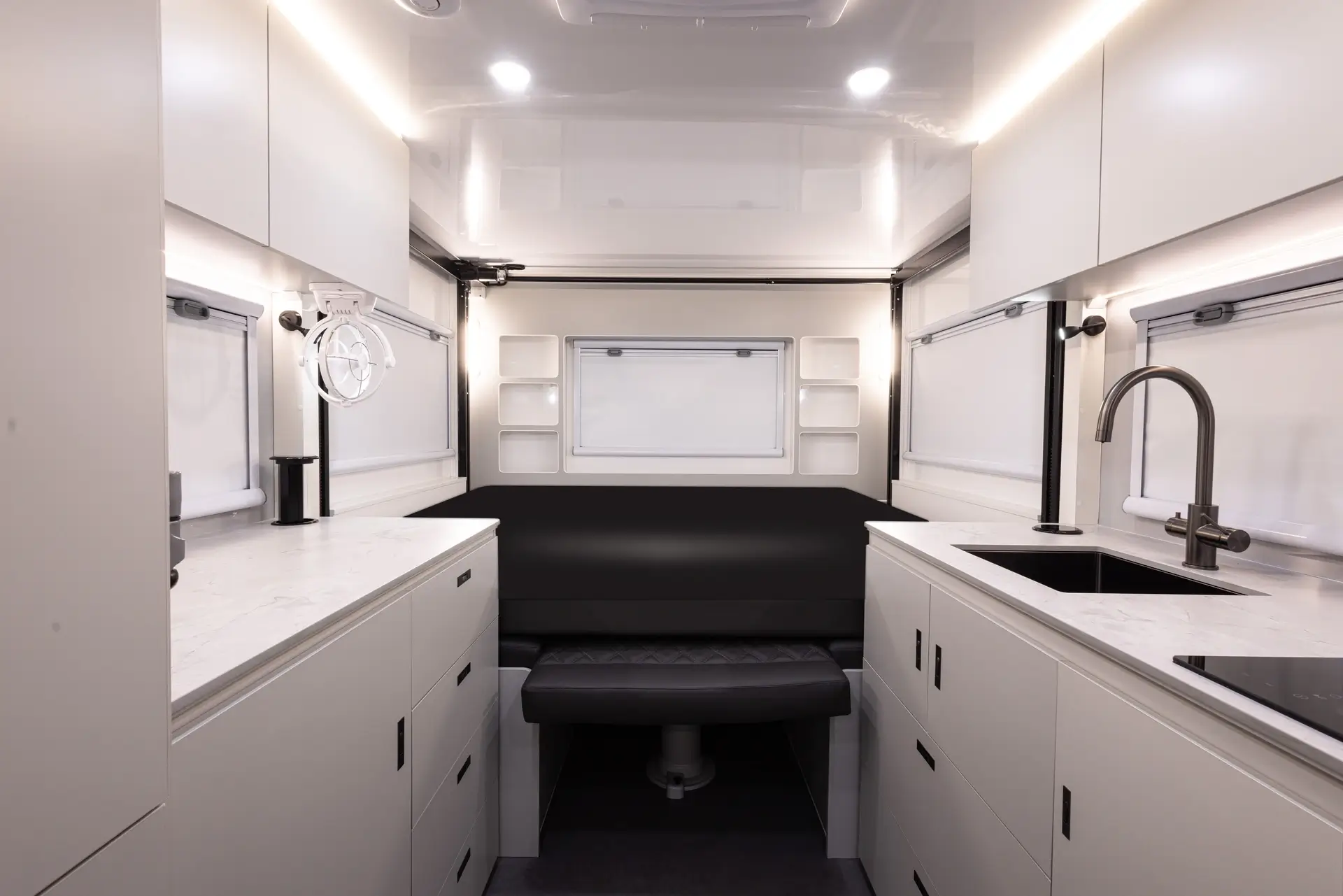

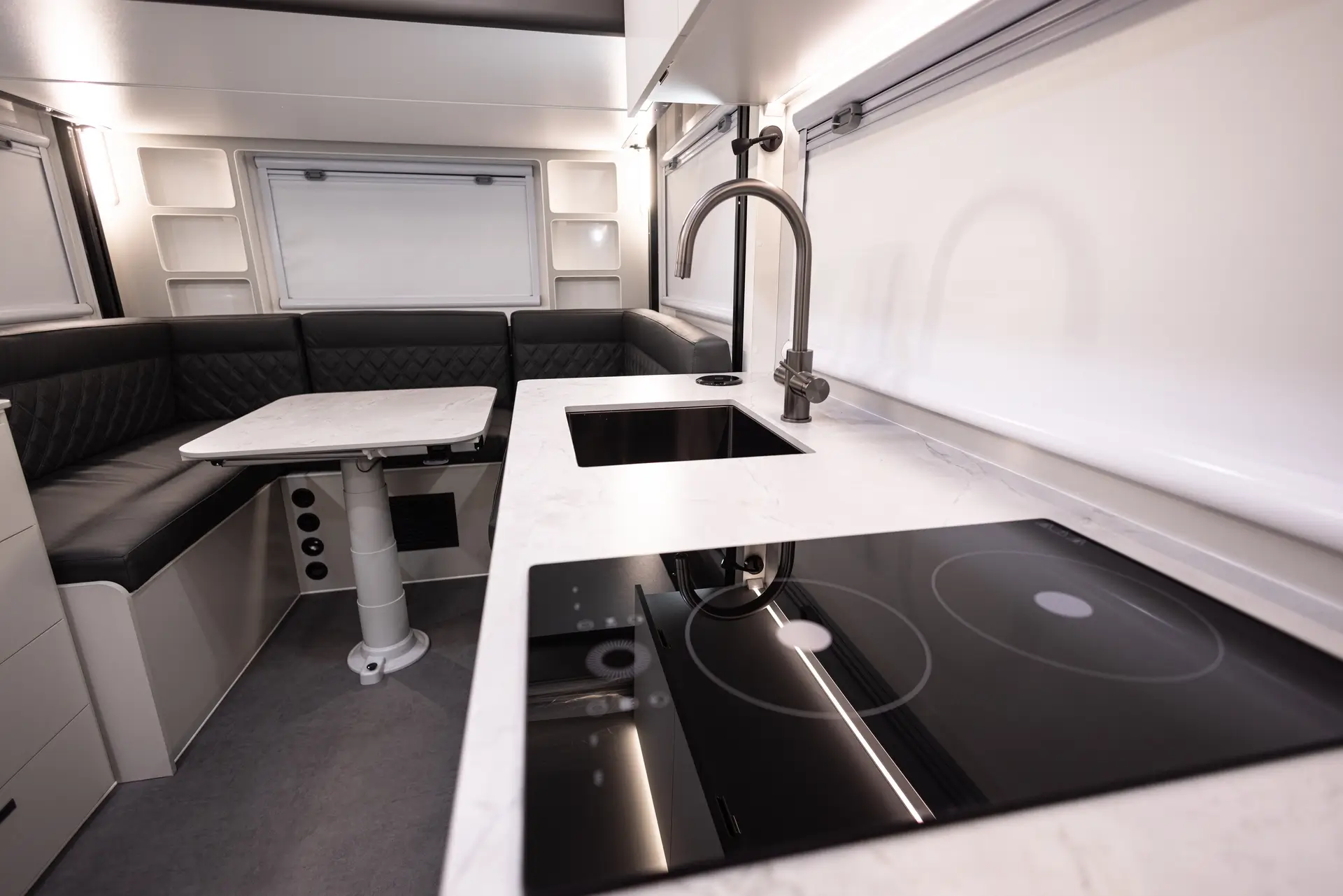

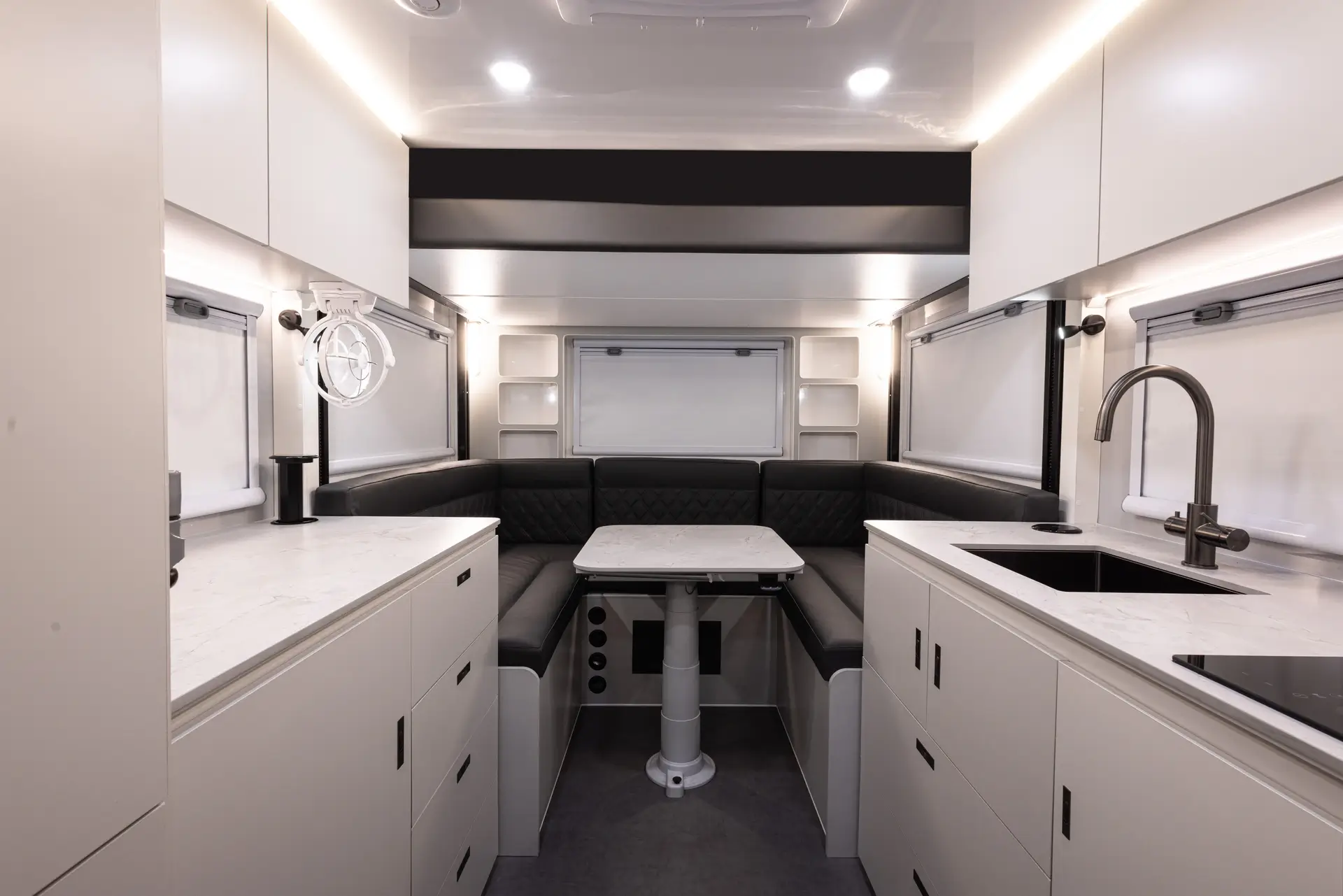

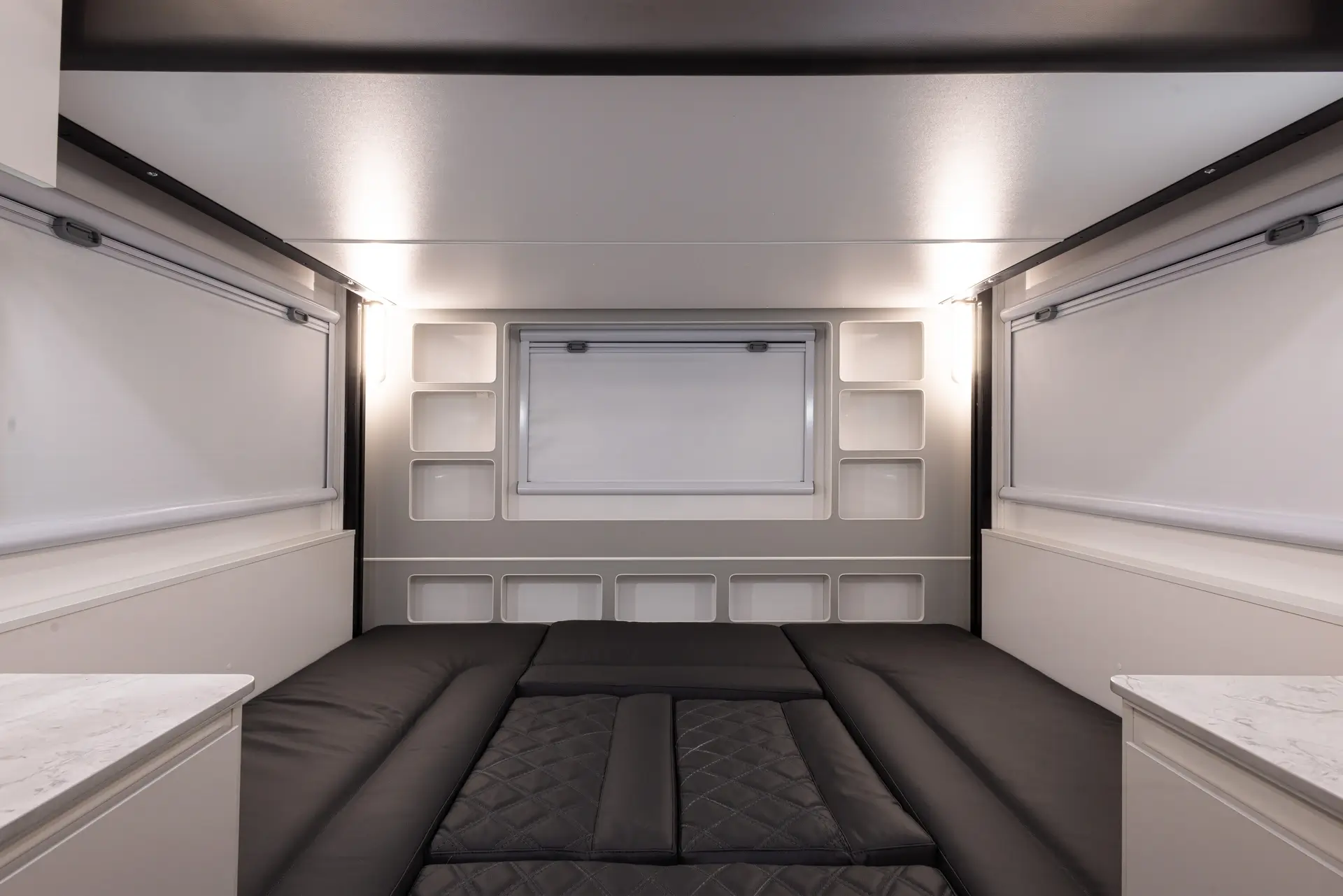

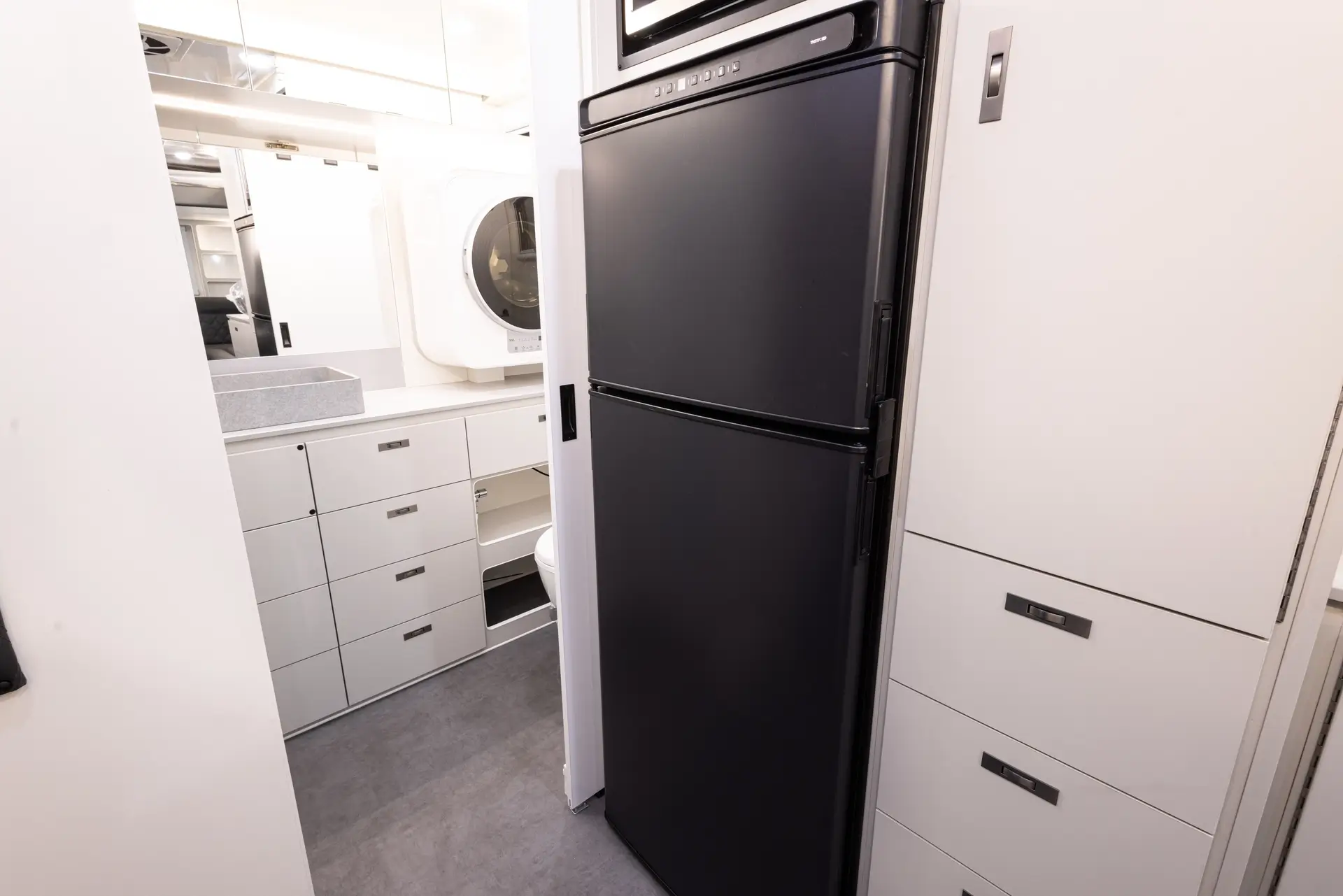

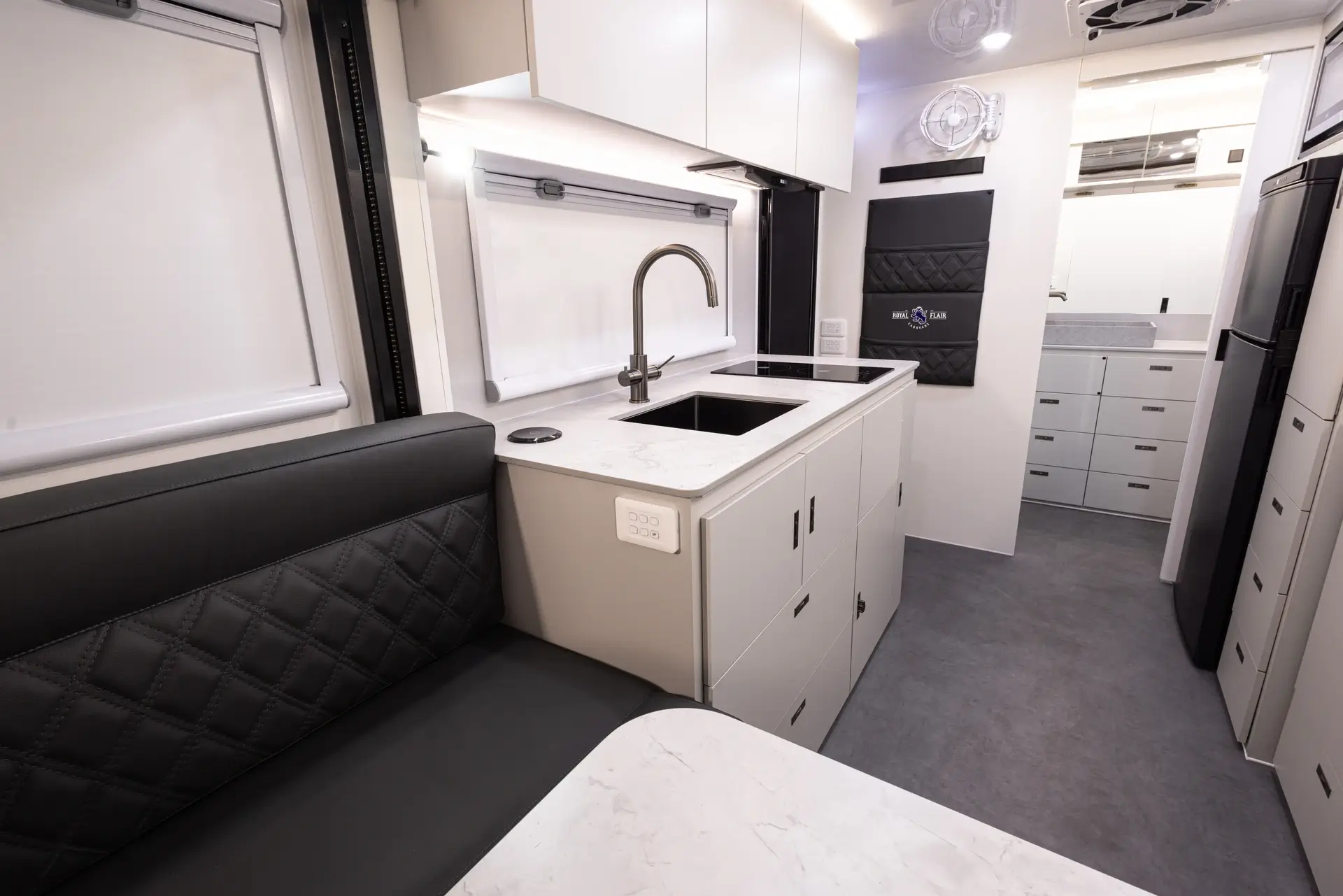

Step inside and explore the interior of the Eco Mate Range – EM18′-1 where comfort and functionality meet. Discover the spacious layout and thoughtful design, perfect for making your travels feel like home.

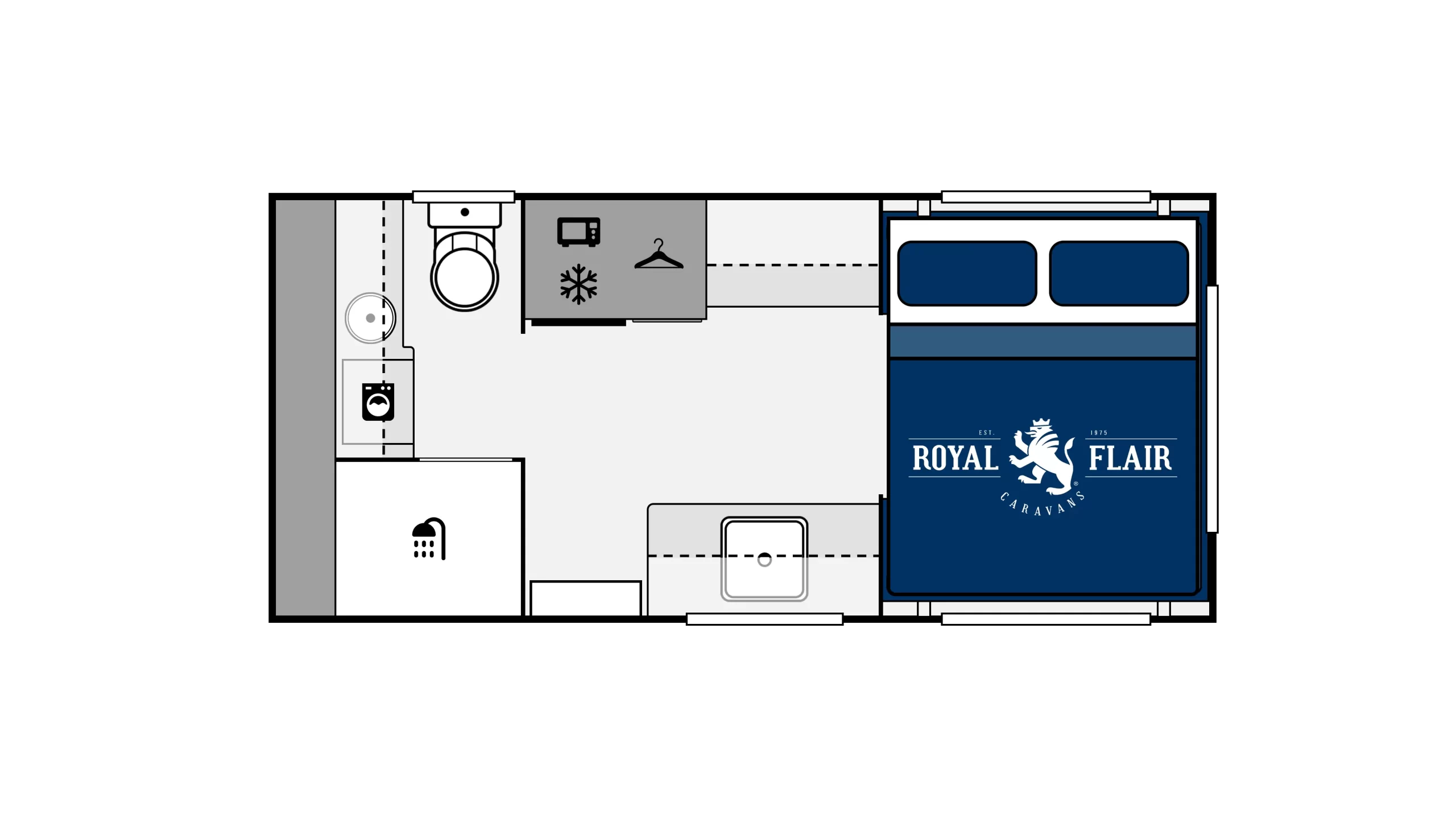

Floorplan

Explore the floor plan below to get a detailed view of the Eco Mate Range – EM18′-1 layout and immerse yourself in your next home on wheels!

Know More About your Dream RV

Looking to find out more about your dream RV? We’re here to help! Enquire today and our team will be in touch soon to assist you further!

Specifications

Explore the specifications listed below to get a closer look at the key features and technical details of the Eco Mate Range – EM18′-1.

Chassis Coating:
Chassis Truss Enduro Coat
Chassis Raiser :
8" Flat Floor
A-Frame:
6" High 5mm RHS Enduro Coat
A-Frame Extension:
25"
Bumper Bar:
Square 90º 4 Arms Enduro Coat
Coupling:
DO45 Recessed with Safety Chains

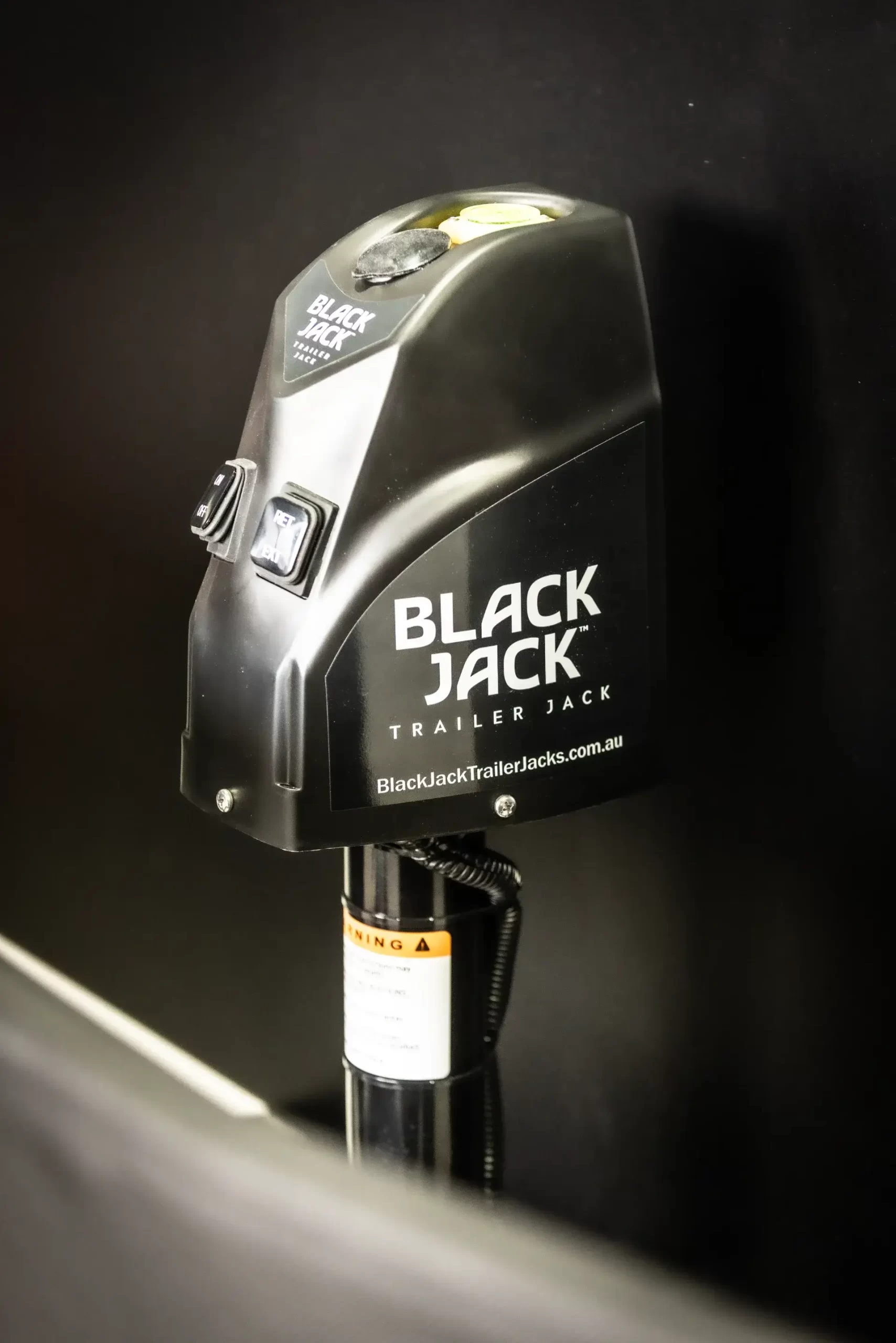

Trailer Jack:
Black Jack Electric Trailer Jack
Electric Brakes:
12"
Floor:
Honeycomb Composite Floor
Spare Wheel:
Bolt On Enduro Coat

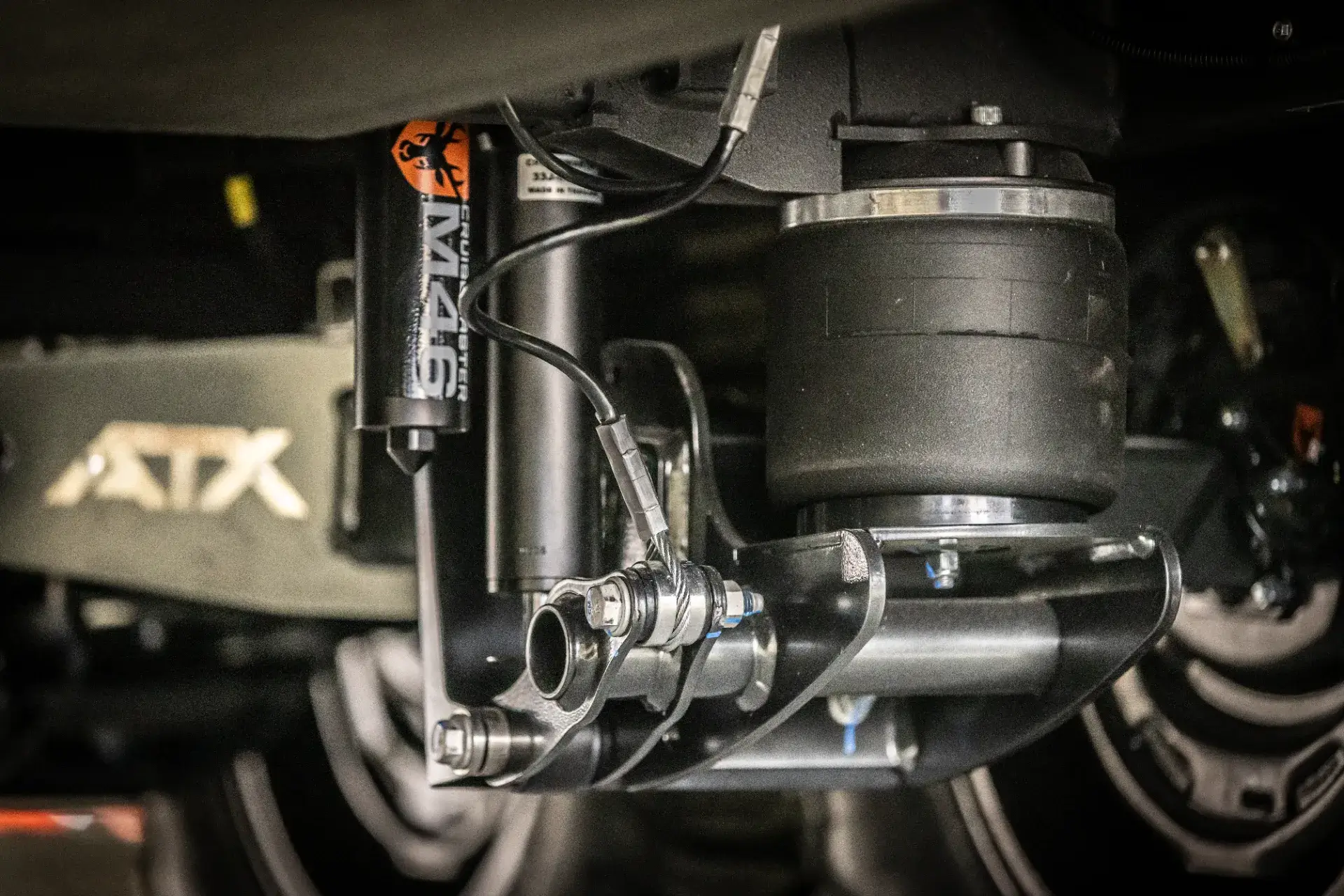

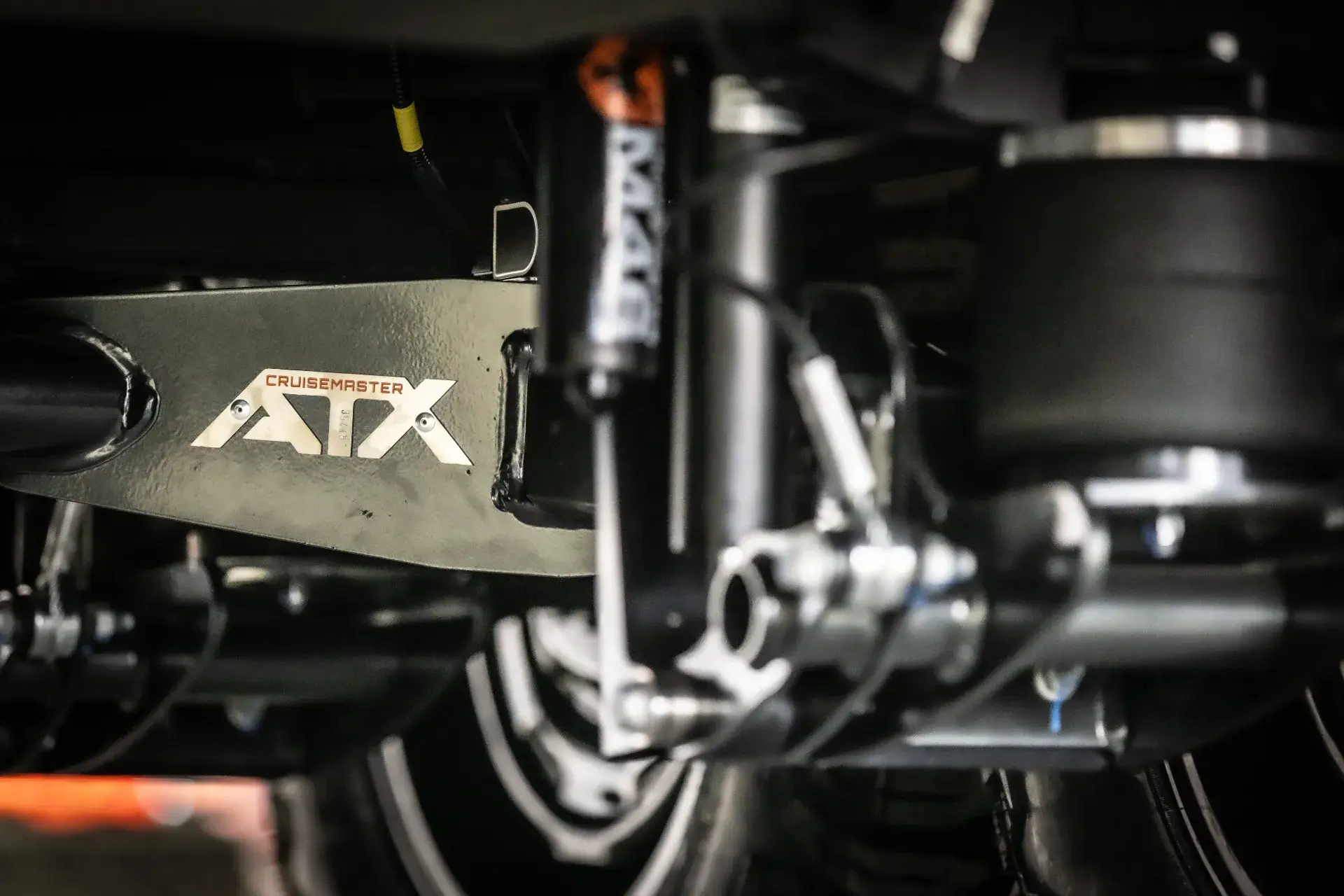

Suspension:
Cruisemaster ATX Airbag BCS Basic (Level 5) Tandem 4050kg GTM
Toolbox:
OTC w 2 slides 2 shelves w provision for bike rack on top
2 Jerrycan Holders:
on Rear Bumper Bar Enduro Coat
Steps:
Step Electric Black Double With Light - OneX
Recovery Points:
at Rear
Boxes on Chassis:
for Water Pumps
ATM:
4.5 tonne + Ball Weight With Maximum Payload
Wood Box:
Located at rear with protective coating

12 Pin Plug:
✔
Air Conditioner:
Roof Dometic FreshJet 7 Series Pro
Antenna:
Cowfish Vantenna for TV and Radio
Awning Bug Lights::
Black x 4

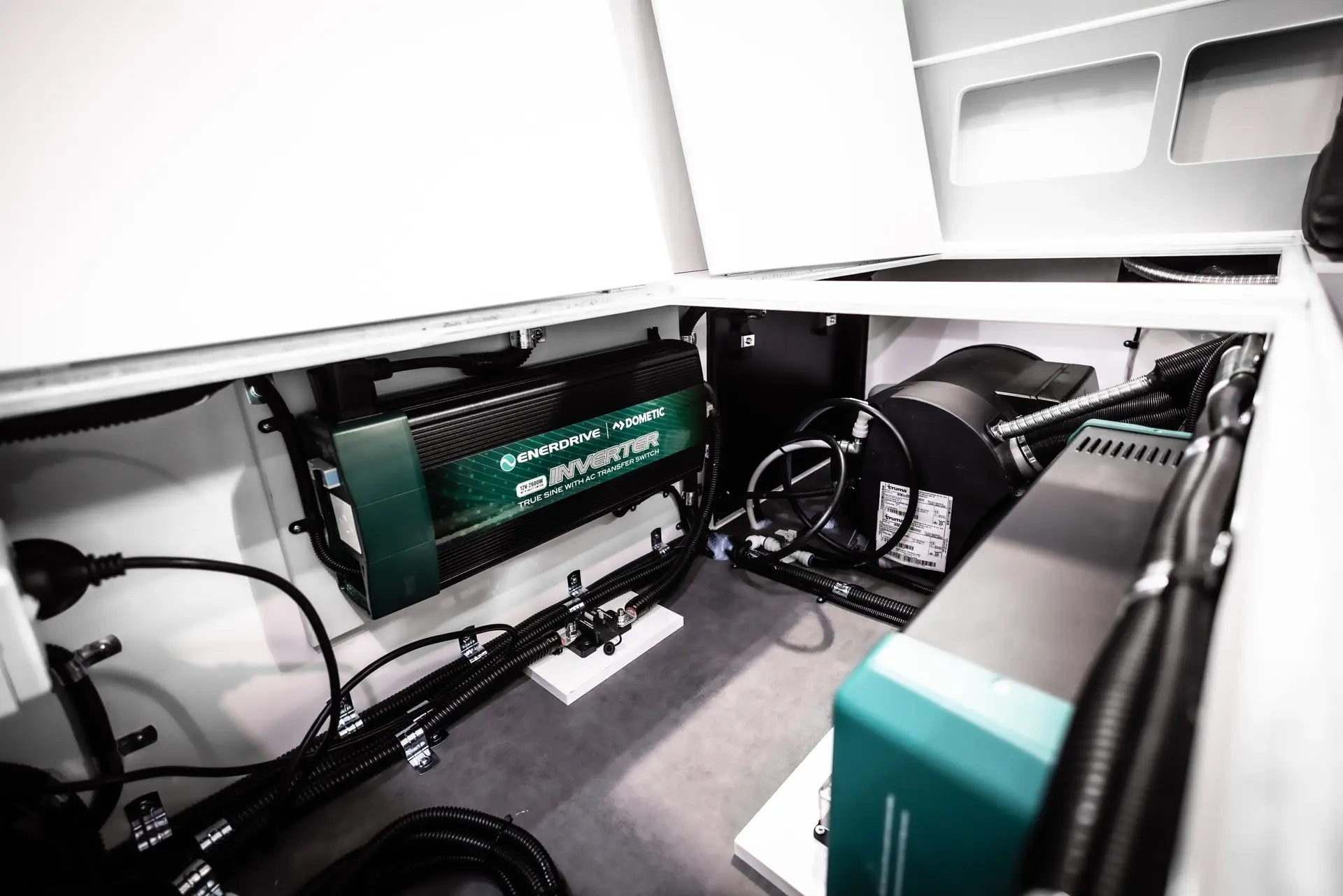

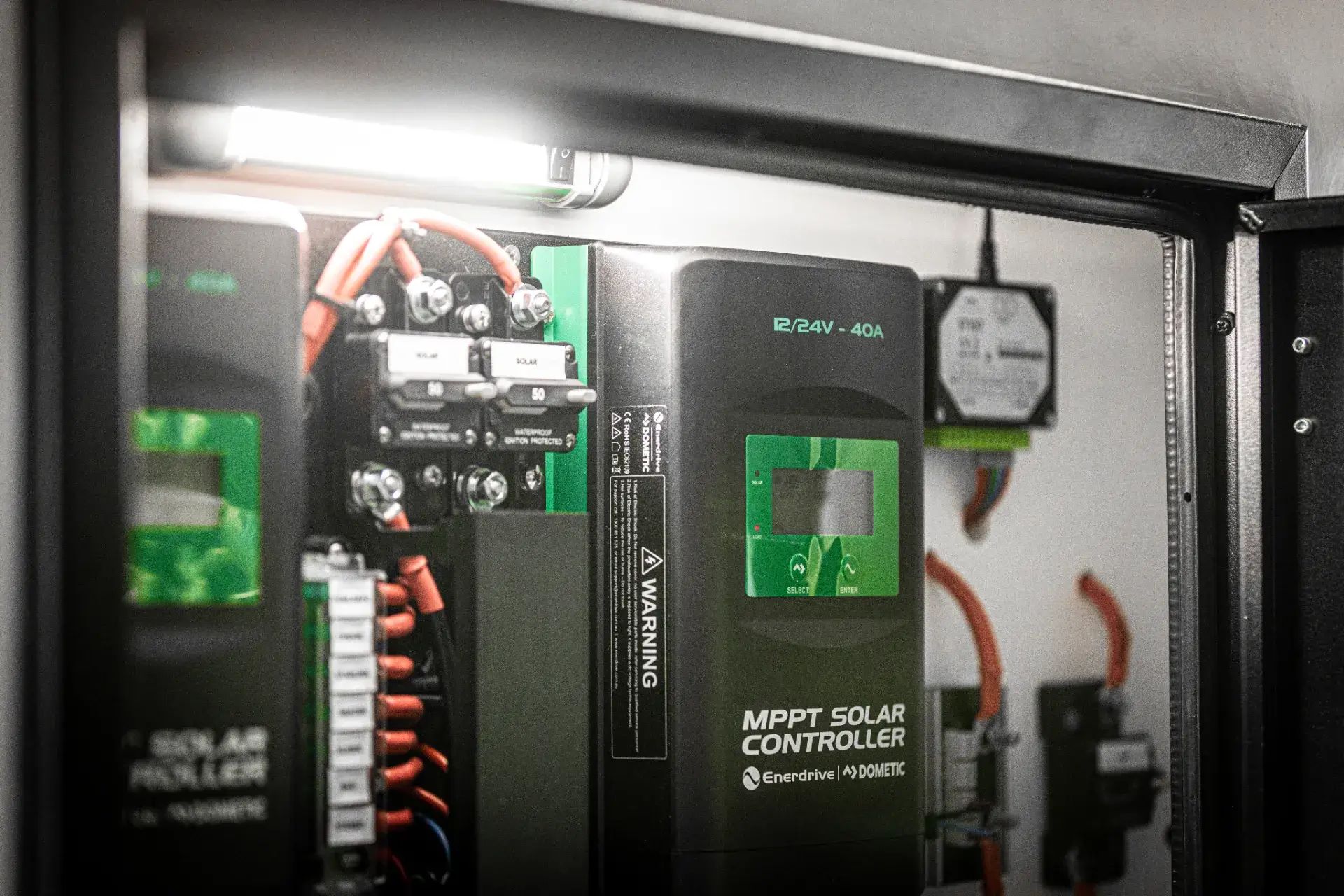

Inverter/Charger:
Enerdrive 5600w (2600w Inverter to Aircon, 3000W Inverter/Charger to the Rest of The Van) & Simarine DMS
Battery:
Arizon 2x 230amp 24V lithium
Breakaway:
Provided
Entertainment System:
Fusion MS-RA670 Entertainment System

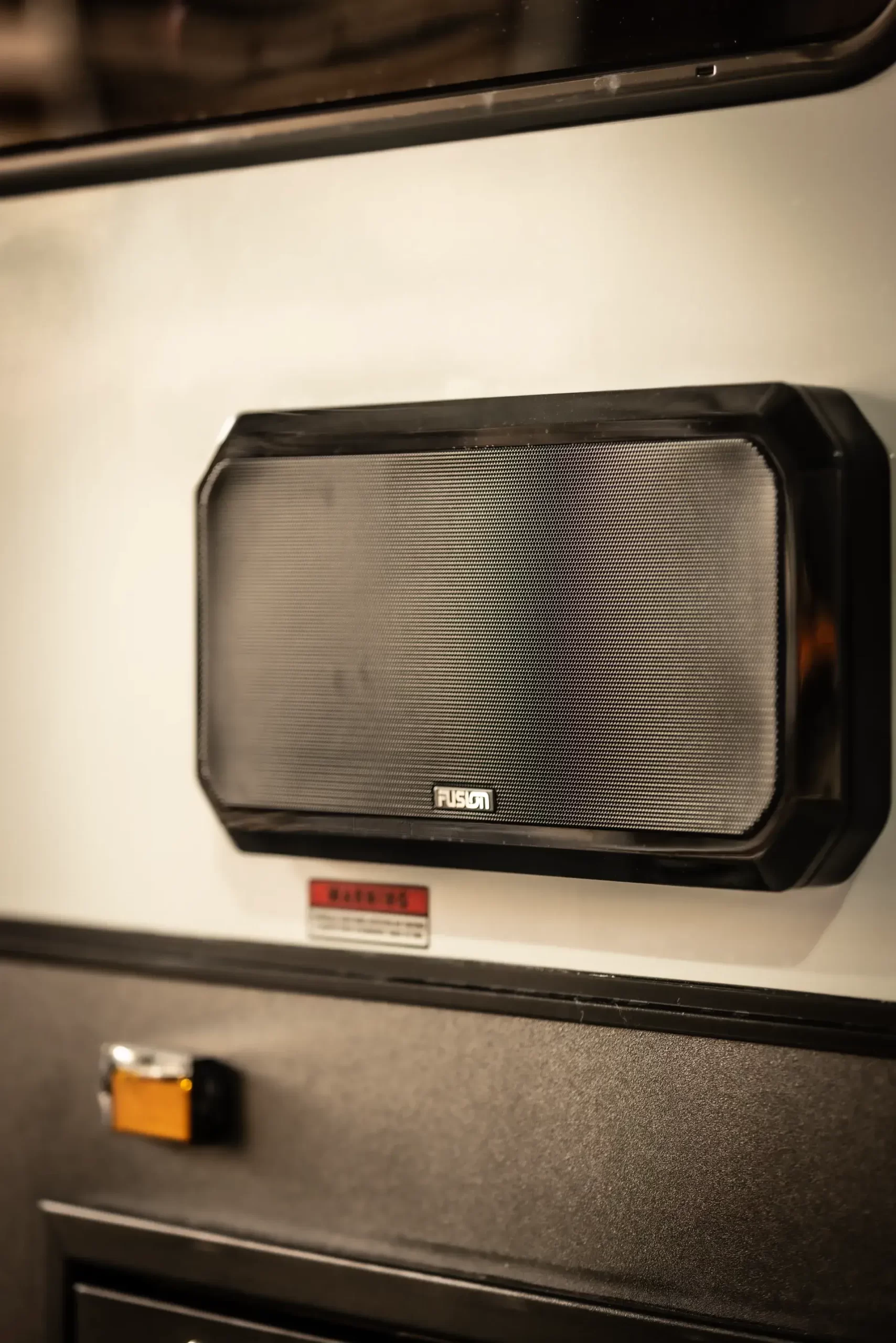

Fusion Marine Speakers:
x 2 with LEDs EL-FL651SPG
Fusion Sound-Panel Black:
(RV-FS402B + RV-FS22SPB Spacer)
Fusion Compact USB Connector:
MS-CBUSBFM1 in OHC

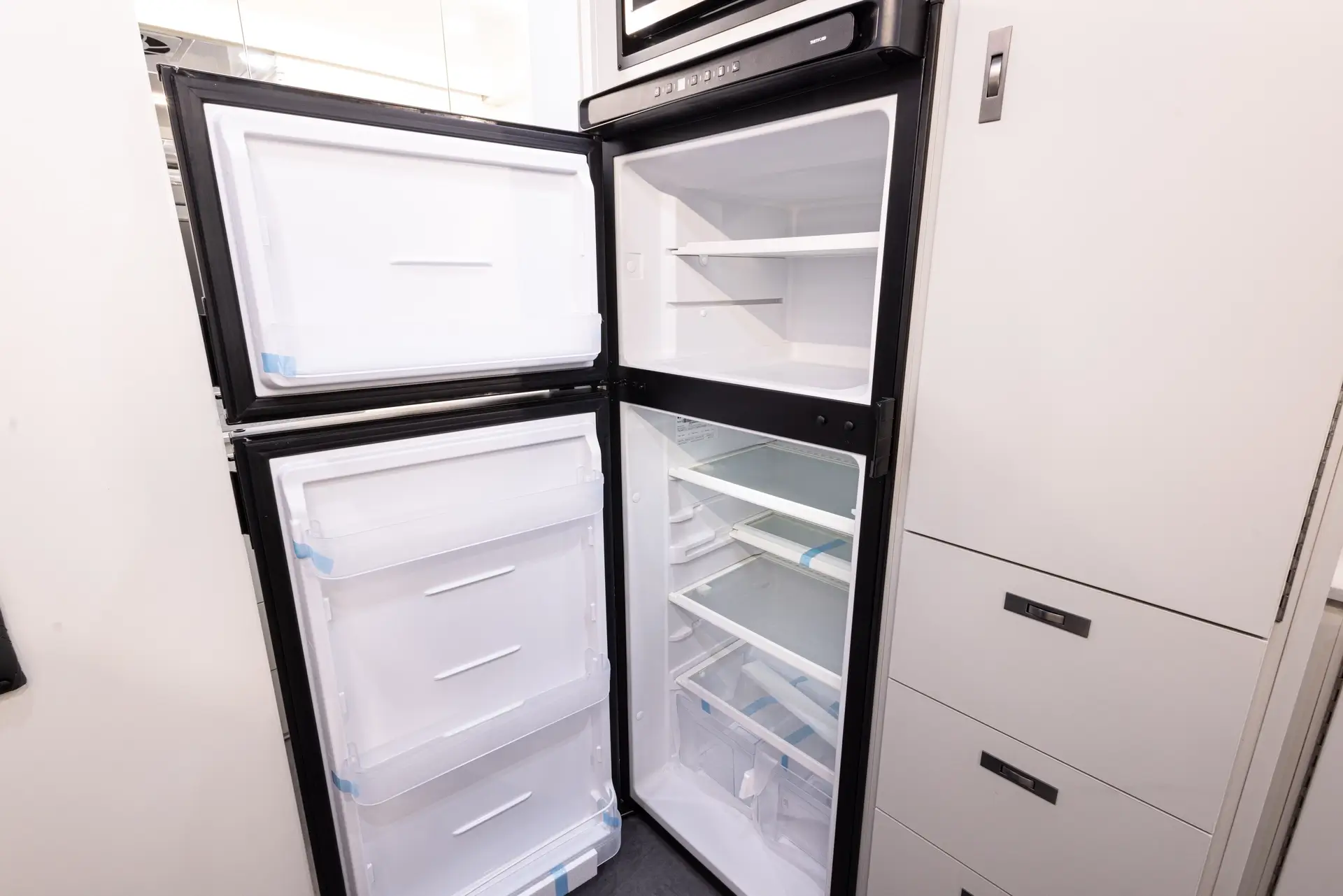

Fridge Thetford:
T1274 274Lt Compressor Ventless
Handle Light:
External Black
TV:
24" Smart LED
Internal Downlights:
LED Internal Downlights
LED Lighting:
Internal / External
Microwave:
23L Flatbed 900w NCE
Power Points:
External Black
Rangehood:
12V
Tail Light:
On Rear Bumper Bar & Rear Wall at 2.1m Max.
Smoke Detector:
✔
Solar Panels:
8 200watt on 2 electric slideouts
TV Entertainment & Airbag Control:
TV Entertainment, Airbag Control in External Table with Light

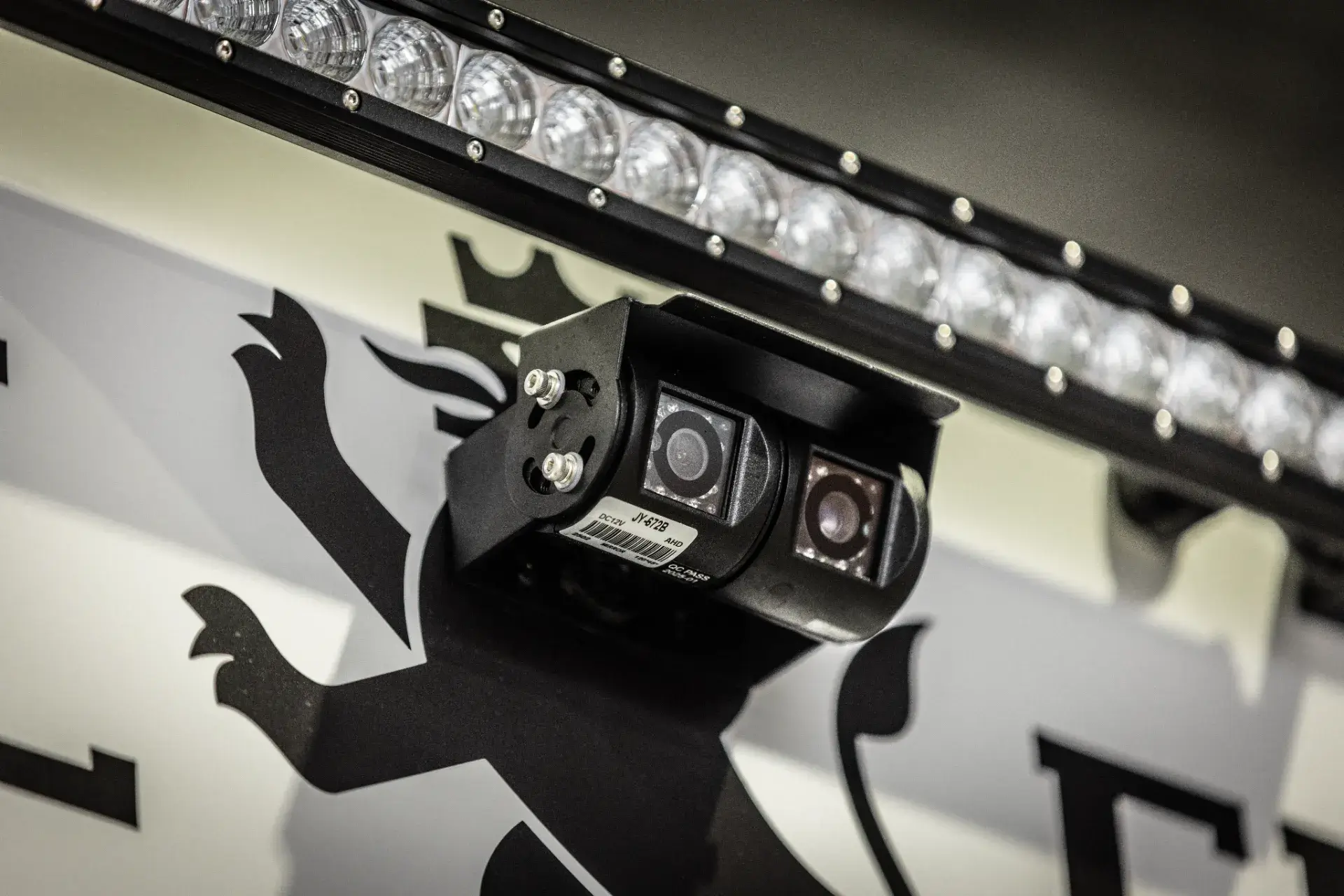

Reverse Camera:
(Dual Black 120/45° AHD + 6" Monitor)
Fans:
12V x4
WiFi:
✔
Charger For Personal devices:
Pop-up Motorised 240v, USB and Wireless Phone Charger x2
Strip Light:
At OHC and Under Benchtop
Sphere Wireless Light Switches:
on Partition
External 240v GPO:
Near Slideout Kitchen

Bathroom Accessories:
✔
Bed Chain:
Electric Motorised
Bed Mattress:
Innerspring Pillow-Top
Cutlery Tray:
✔
Drawers:
Drawers Metal Sided Soft Close
Fire Extinguisher:
Recessed
Mats:
RFC
Piano Hinges:
on All Doors
Razor Coat Hooks:
✔
Safety Handrail:
with LED
Sliding Pantry:
✔
Table:
with Adjustable Leg and Tic Cushion
Pullout Bin:
2x15L Base Mount

Flat Access Doors:
(Black Frame/ Infill)
Flat Aluminium Plate Front:
Black 1000mm
Flat Aluminium Plate Rear:
Black 700mm
Flat Aluminium Plate Sides:
Black 1000mm - 700mm
Flat Plate Cover:
Under Pipes (W/A)
Galvanised Wheel Arches:
Low Profile
Hatches:
Maxxfan with thermostat and rain sensor - Carafan Pressuriser Unit
Carafan Sahara:
CP700 Pressuriser Unit
Insulation:
Full
Trims:
Full trims with logos and rear wing
Mud Flaps:
✔
Reflectors:
✔
External Table:
Recessed External Drop Down Table with Light
Tunnel Boots:
Galvanised
Vents External:
Black
Wood Box Black Flat Plate:
at Rear Bumper Bar

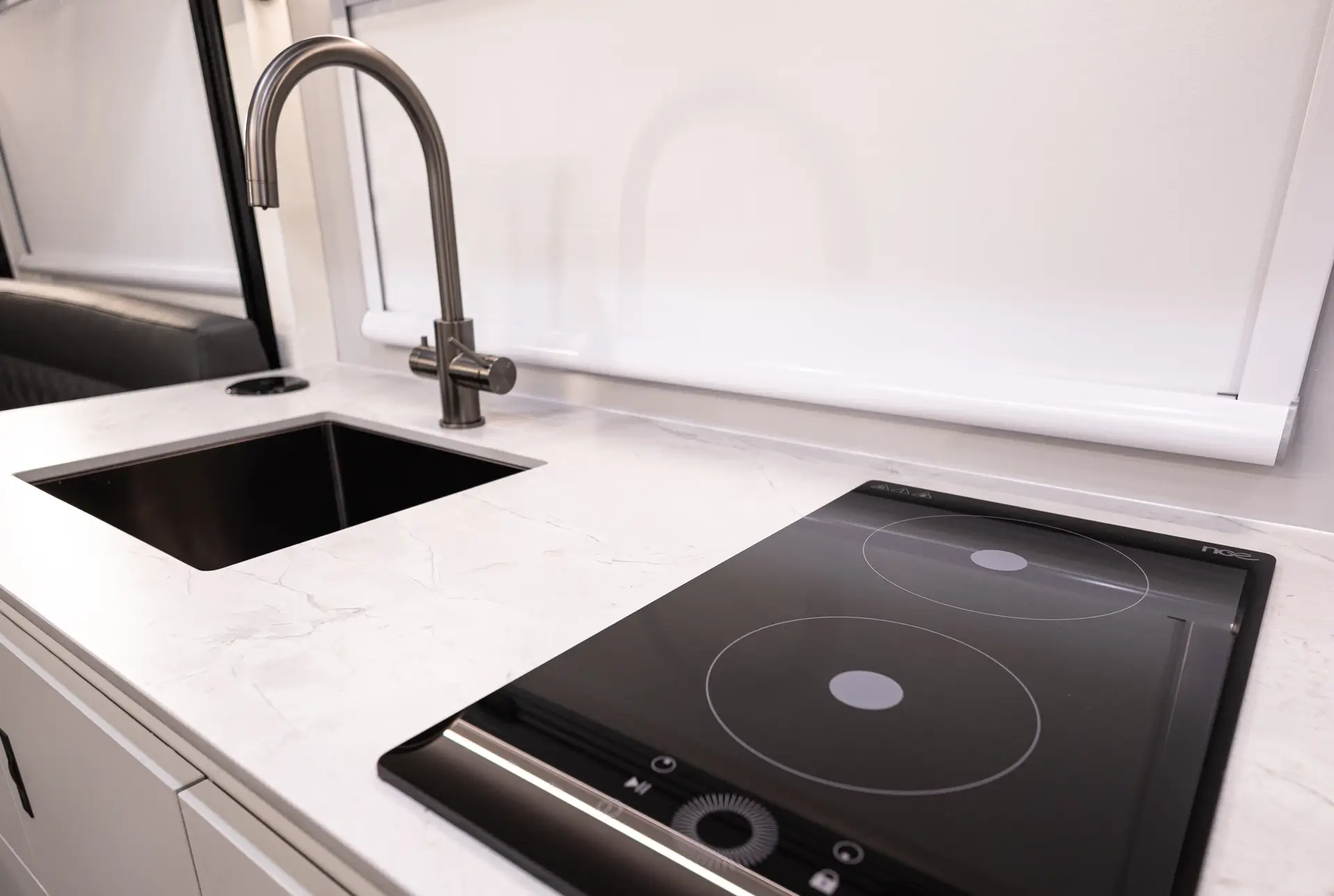

Outdoor Cooking:
Kitchen Slideout Slimline Induction Black

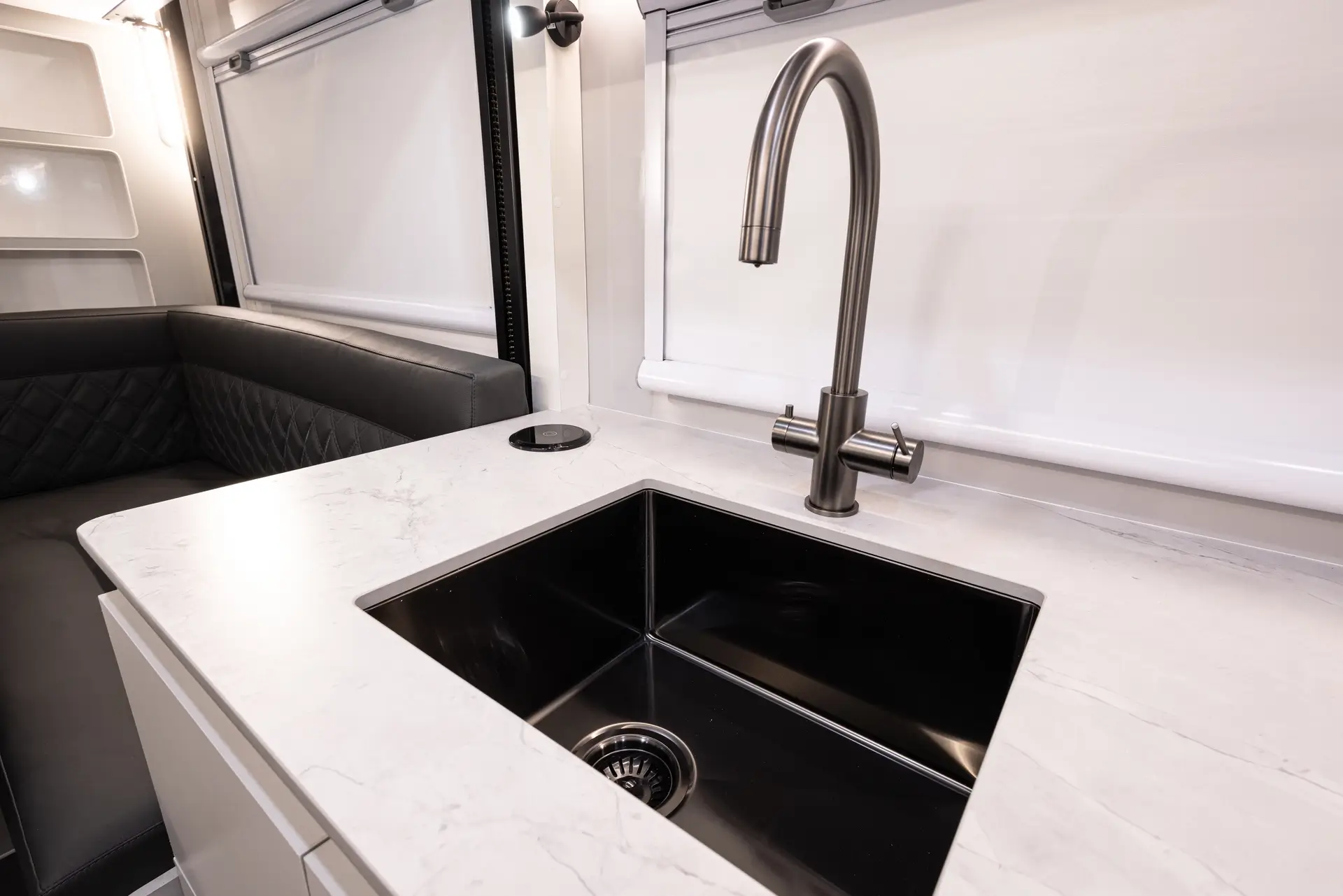

Tap:
Black Flick Mixer Tap
City Mains Pressure Inlet:
✔
Lockable Water Filler:
Black with Taps
Mains Pressure Tap:
on A-Frame
Main Pressure Water Filler:
✔

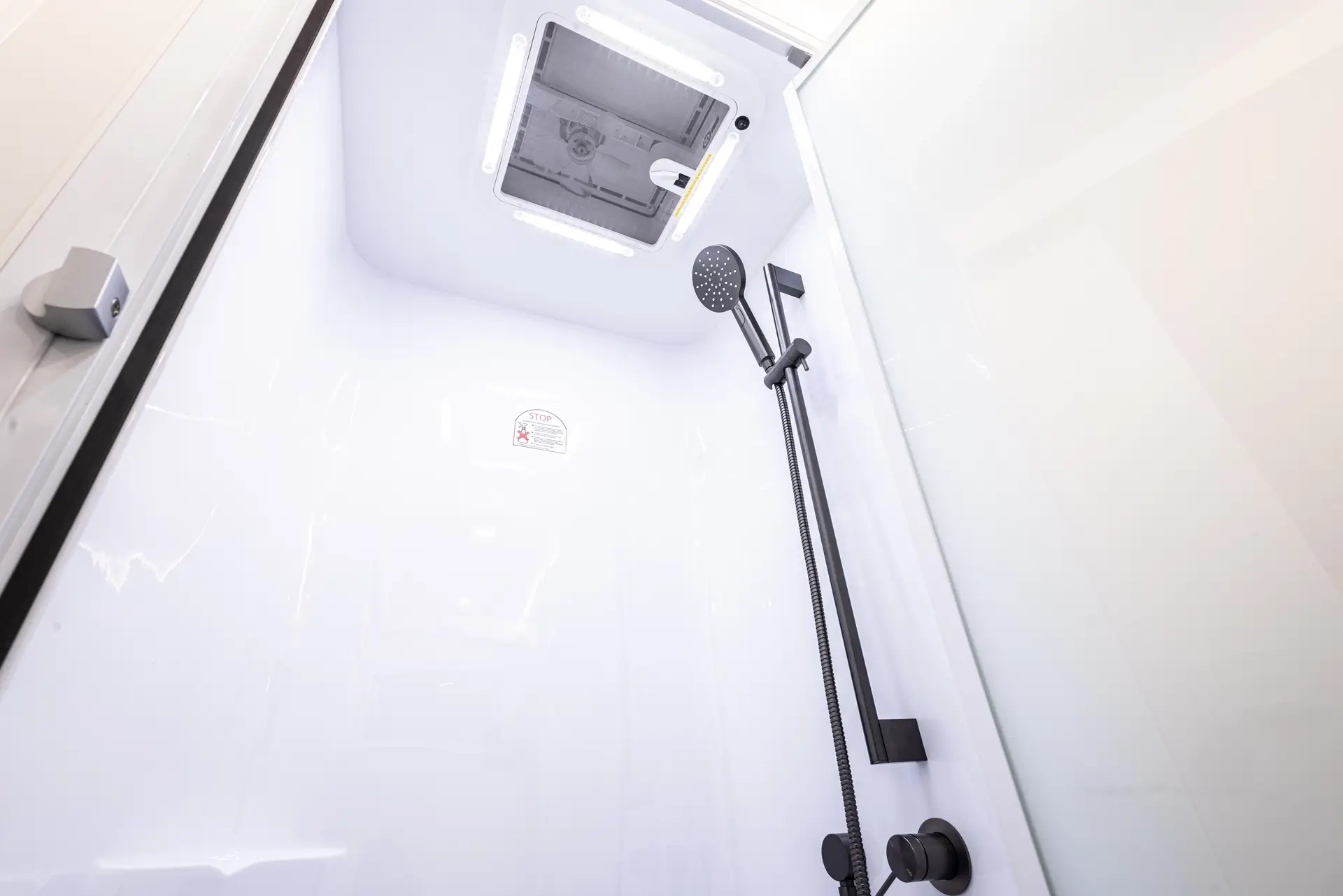

Shower Door:
Frosted Glass
Shower Mould:
ABS
Toilet:
Thetford Cassette Plastic Bowl C223CS

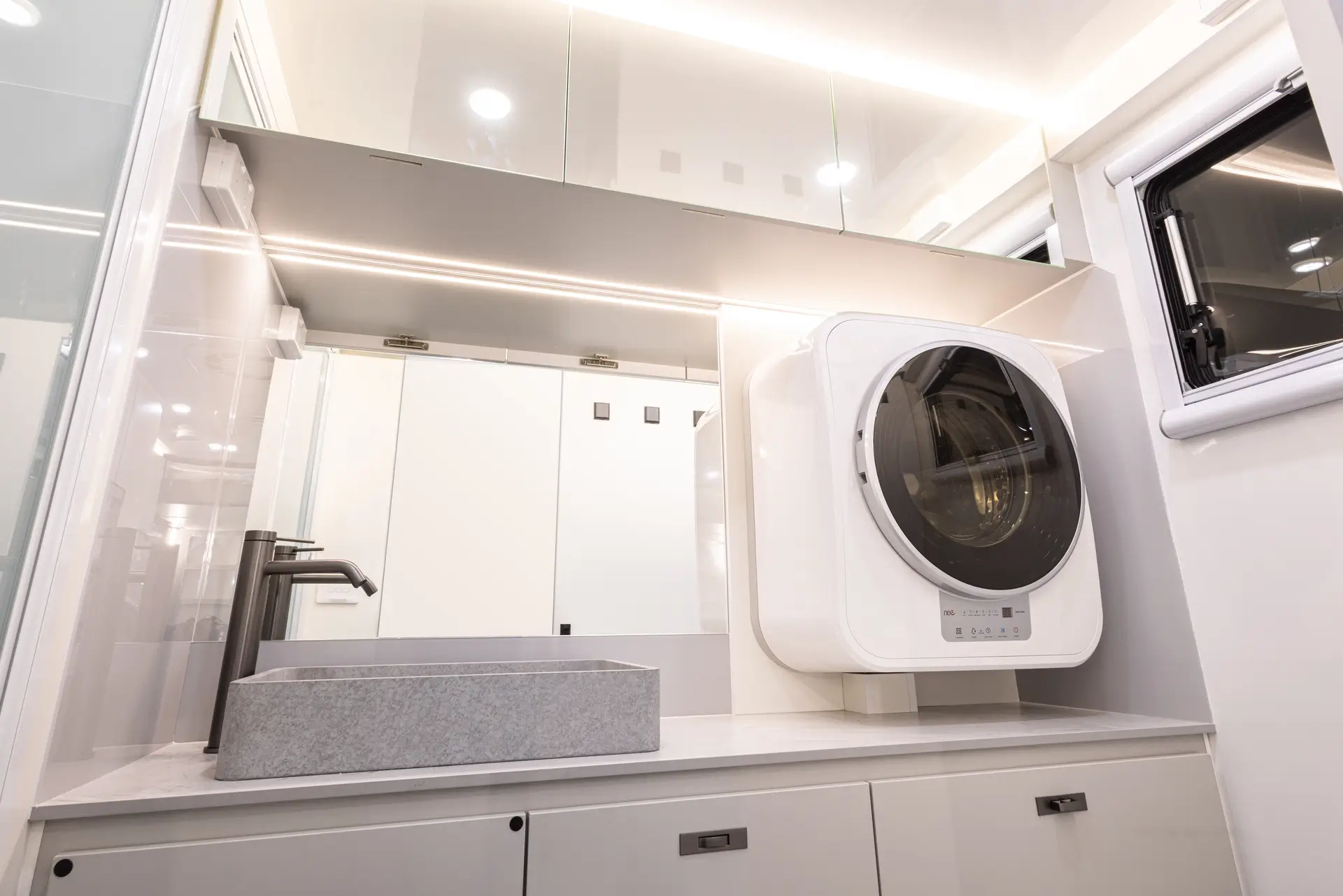

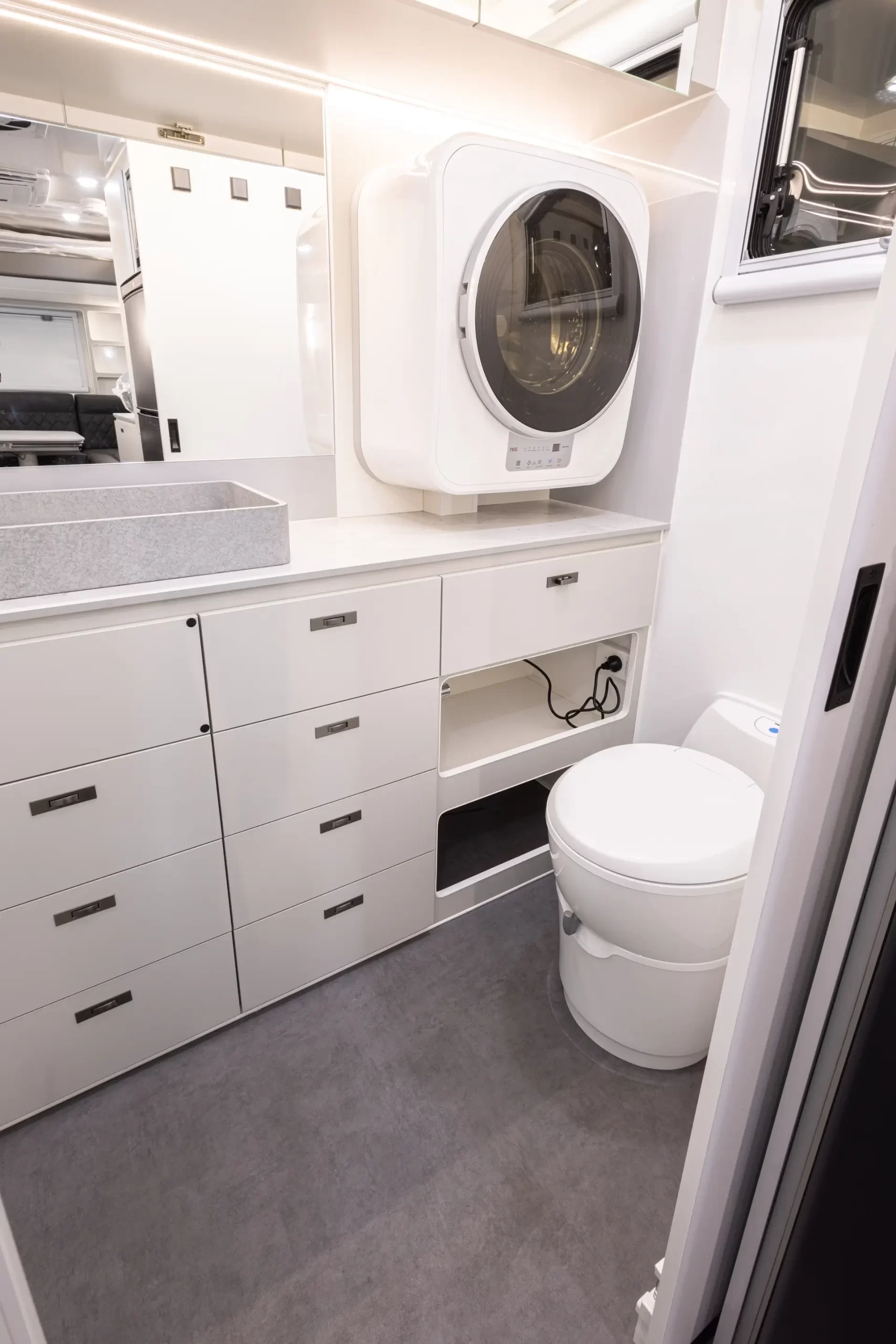

Washing Machine:
Sphere 2.5kg Top Loader
Water Filter:
With 3-Way Mixer Tap
Water Pump:
12v x2 (Installed Externally in a Box Under Van)
Water Tank:
x4 with Stone Guard (2x95ltr &1x65ltr &1x50ltr) includes ABS x2 95ltr and x2 50ltr
4th Tank Isolated for Drinking:
with Pump & Filler
Grey Water Tank:
x 1

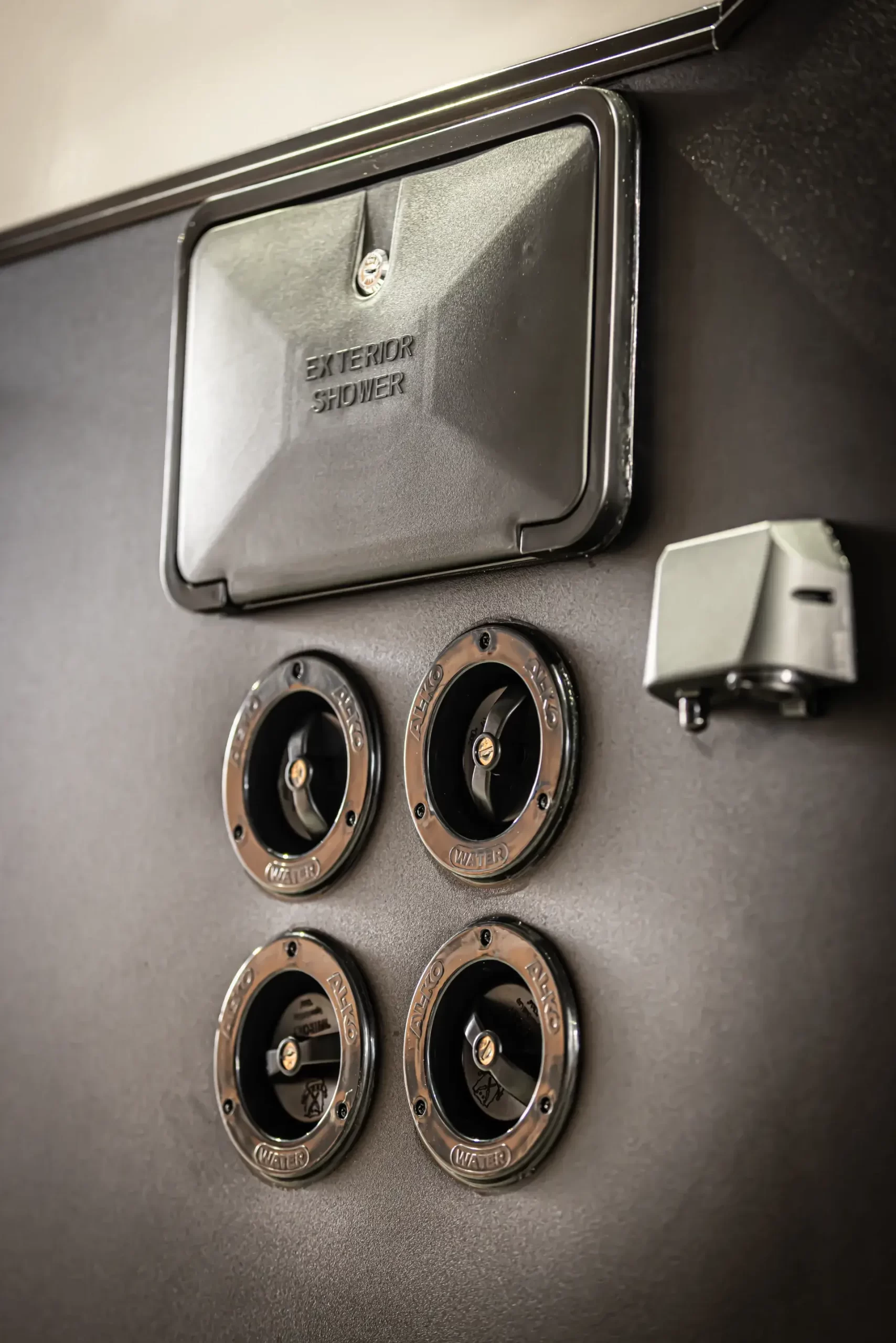

External Shower:
with Awning Light
White Shower Door Frame:
✔
Heater:
Hydraulic Dieselheat DH15

Travel Length:
8170 mm
Travel Width:
2500 mm
Caravan Length:
5490 mm

3D Tour

Take the 3D tour below to get a real taste of what it’s like inside the Eco Mate Range – EM18′-1. Explore every detail and experience the space as if you were there!
